Spool Mitsubishi 4G93 Conrods

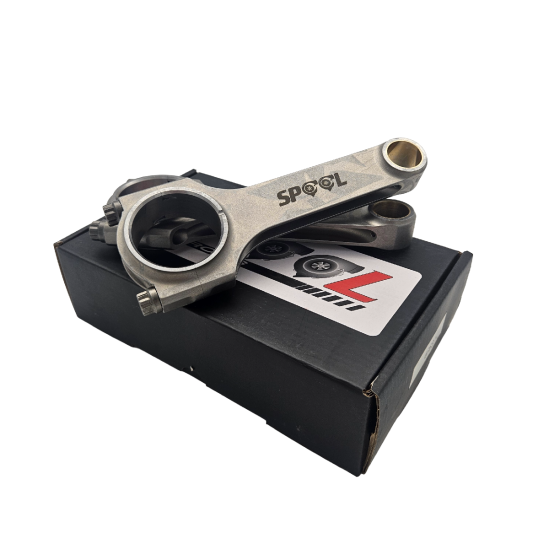

Spool Mitsubishi 4G63 H-Beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for most Mitsubish EVO 4G63 engines
All engines that have the following specs
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for most Mitsubish EVO 4G63 engines
All engines that have the following specs
- 150mm c/c
- 22mm pin
- 48mm b/e tunnel
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.150mm c/c
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Mitsubishi 4G63 H-Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | 4G63 |
| Make | Mitsubishi |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the recommended fitment for the Spool Mitsubishi 4G63 H-Beam Conrods?
These conrods are designed as a direct fit for most Mitsubishi EVO 4G63 engines. Ensure your engine has the following specifications: 150mm centre-to-centre length, 22mm pin diameter, and 48mm big-end tunnel.
What materials and processes are used in the construction of these conrods?
The Spool 4G63 H-Beam Conrods are made from high tensile 4340 forged steel, featuring a two-piece forging design. They undergo rigorous testing including X-ray, sonic testing, and are heat treated for strength, shot peened for durability, and Magnafluxed for integrity.
Are bearings included with the Spool 4G63 H-Beam Conrods?
No, the Spool Mitsubishi 4G63 H-Beam Conrods do not come with bearings. You will need to source compatible bearings separately for your build.
What kind of power levels can these conrods handle?
While specific power ratings can vary, customers have successfully used these conrods in builds exceeding 1000 RWHP. Reliability at high power levels will depend on proper machining, clearances, tuning, and fuel quality.
Do I need to perform any machining on these conrods before installation?
Depending on your engine's specific tolerances, you may need to hone the big-end or small-end of the conrods for proper fitment. Always check clearances as per your engine builder's recommendations.
