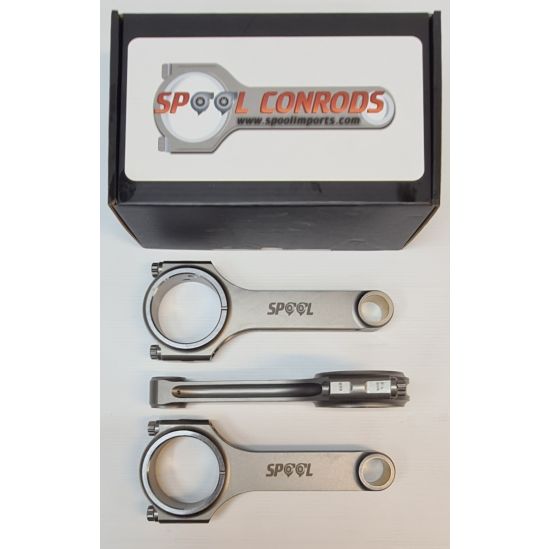

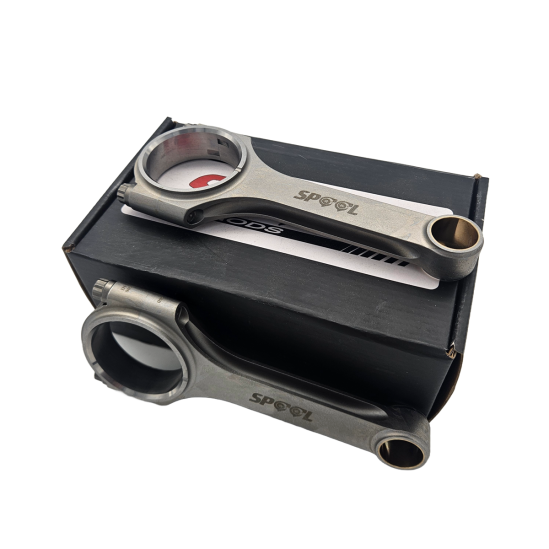

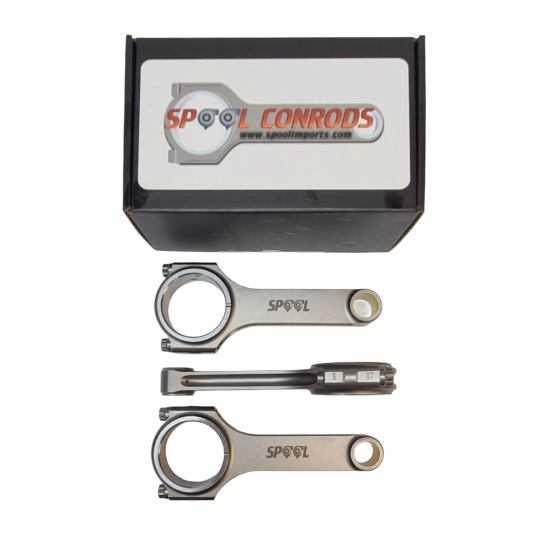

Spool Ford XR6 Barra Turbo H Beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
ARP L19 bolt upgrade option available.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Ford XR6 Barra Turbo H Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What are the recommended machining requirements for the Spool Ford XR6 Barra Turbo H Beam Conrods?
The Spool Barra H Beam Conrods may require big-end or small-end honing to ensure proper fitment due to variations in factory journal and pin sizes. Always check clearances with your specific engine setup.
What is the weight tolerance for the Spool Barra H Beam Conrods?
The Spool Barra H Beam Conrods are weight matched within a tolerance of plus or minus 1 gram. This ensures consistency across the set, which is crucial for balanced performance.
Can I upgrade the bolts on the Spool Barra H Beam Conrods?
Yes, you can opt for the ARP L19 bolt upgrade for the Spool Barra H Beam Conrods. This upgrade provides enhanced strength for high-performance applications, but be sure to follow the specific torque or stretch specifications for L19 bolts.
What materials are used in the construction of the Spool Barra H Beam Conrods?
The Spool Barra H Beam Conrods are made from high tensile 4340 forged steel, which provides excellent strength and durability. They undergo processes such as quenching, heat treatment, and shot peening to enhance their performance characteristics.
Are bearings included with the Spool Barra H Beam Conrods?
No, the Spool Barra H Beam Conrods do not come with bearings included. It is essential to source the appropriate bearings separately to match your engine specifications.
-
-
-
-
-
