PSR3582 Gen 2 Dual Ball Bearing Turbocharger External Wastegate Version for BA/F Ford Falcon XR6

USD$855.91
SKU
PUL-G2-3582-TC-XR6-BA
+ -
Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

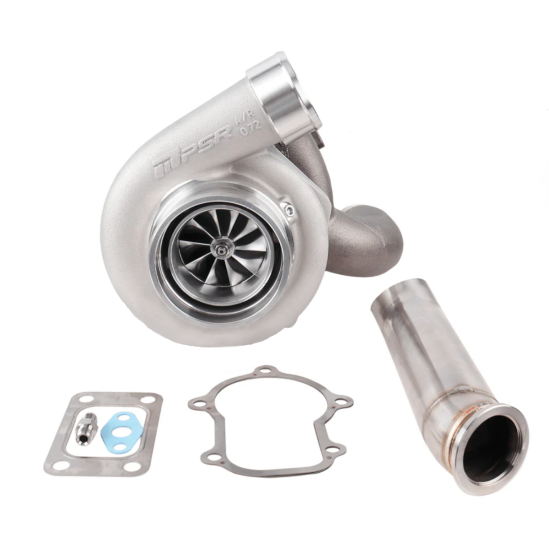

This turbocharger is designed for the BA/BF Ford Falcon XR6, offering several key performance upgrades:

  • Compressor Wheel: The new 10-blade billet compressor wheel has improved aerodynamics, providing more airflow than the stock cast wheel or the Gen1 11-blade billet wheel.

  • Turbine Wheel: Features a new 9-blade aerodynamic turbine wheel that is lighter, with reduced inertia and improved flow characteristics, enhancing overall performance.

  • Ball Bearing System: Equipped with a rebuildable dual ceramic ball bearing system, providing better durability, responsiveness, and reduced turbo lag.

  • Compressor Cover: The turbo includes a larger 0.72 A/R compressor cover, featuring a 4-inch anti-surge inlet to reduce surge and optimize airflow.

  • Billet Actuator: Comes with a billet actuator that has a black anodized coating, ensuring reliable and precise wastegate control.

  • Gaskets and Fittings: Includes a 3-layer stainless steel 5-bolt gasket for secure sealing. It also has -6AN water ports, -4AN oil feed to the restrictor, and a standard T3 oil drain flange for easy installation.

  • Compressor and Turbine Dimensions:

    • Compressor Wheel: 65.7mm (inducer) x 82.6mm (exducer), with an extended tip diameter of 85.29mm.
    • Turbine Wheel: 68mm (inducer) x 62.3mm (exducer).
  • Inlet and Outlet:

    • Compressor Inlet: 4-inch hose.
    • Compressor Outlet: 2.5-inch hose.
    • Turbine Inlet: T3 Open.
    • Turbine Outlet: 5-bolt pattern.
  • Turbine Housing: The turbine housing has a 33mm internal wastegate hole and a 1.06 A/R for better flow and performance.

  • Water and Oil Ports: Features -6AN water ports and -4AN oil feed to the restrictor, with a standard T3 oil drain flange for easy installation.

  • Compatibility: This turbo is designed to fit all BA and BF Falcons and comes as a complete turbocharger package.

  • Wastegate Compatibility: Works with PSR New Generation 45mm wastegate or Turbosmart Gen V wastegate.

This turbo provides significant performance improvements, including increased airflow and faster spool times, making it a great upgrade for the BA and BF Ford Falcon XR6.

More Information
Product Name PSR3582 Gen 2 Dual Ball Bearing Turbocharger External Wastegate Version for BA/F Ford Falcon XR6
Brands Pulsar
Engine Barra XR6
Make Ford
