Turbosmart Gen-V WG60 Power-Gate 60 Black TS-0555-1012
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

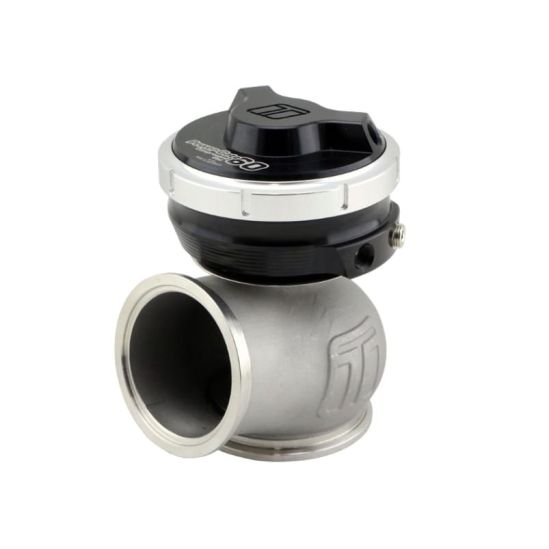

Turbosmart 60mm GenV Wastegate
The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective 60mm external wastegate - The largest in the Turbosmart GenV range and the Highest Flowing 'Poppet Style' Wastegate in the World. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.
The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.
A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.
Features
Class Leading, Thermal Performance
Class Leading, CFD & Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clock-able Actuator Housing
60mm V-Band Fitment
Nitronic 60 Valve Guide & High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout. If you are unsure get in touch with [email protected]
| Product Name | Turbosmart Gen-V WG60 Power-Gate 60 Black TS-0555-1012 |
|---|---|
| Brands | Turbosmart |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What are the benefits of using the Turbosmart Gen-V WG60 Power-Gate 60 with a Barra XR6 engine?
The Turbosmart Gen-V WG60 Power-Gate 60 offers superior flow performance and thermal management, making it ideal for high-performance Barra XR6 builds. Its robust design ensures reliability under high boost conditions, and the ability to configure the actuator allows for precise control over boost levels.
Can I use the Gen-V WG60 as a direct replacement for my existing wastegate?
Yes, the Gen-V WG60 is a direct fit upgrade for all Gen4 Turbosmart wastegates. It retains the same mounting orientation, allowing for an easy swap without the need for extensive modifications.
What kind of tuning adjustments should I consider after installing the WG60?
After installing the WG60, it's crucial to recalibrate your engine management system to account for the new wastegate's flow characteristics. This may involve adjusting boost levels and tuning the fuel map to ensure optimal performance and reliability.
What is the recommended installation procedure for the Turbosmart Gen-V WG60?
Ensure that the wastegate is mounted securely using the provided strap-type V-band clamps. It's important to connect the reference hoses correctly and consider the optional liquid-cooling provision if operating in extreme conditions. Always check for proper clearance and routing to avoid any interference.
Are there any specific maintenance tips for the WG60 wastegate?
Regularly inspect the wastegate for signs of wear or damage, especially after high-performance use. Ensure that the actuator is functioning correctly and that the springs are in good condition. Cleaning the wastegate periodically can help maintain optimal performance and longevity.
