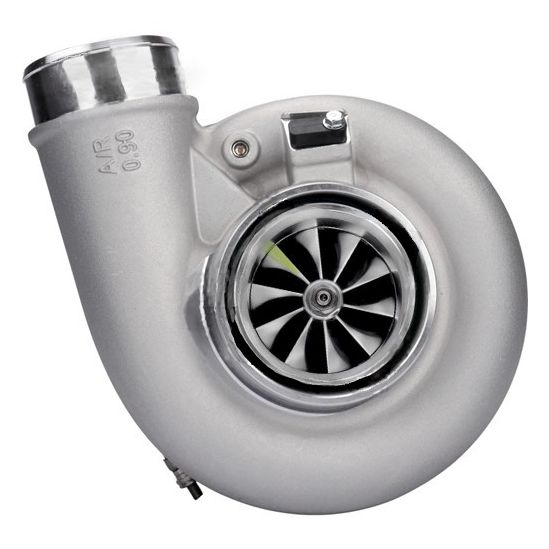

PULSAR 7170G Dual Ball Bearing 1150HP 71mm Turbo
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
PSR 7170G Dual Ball Bearing 1150HP 71mm Turbo
DESCRIPTION:
- Dual ceramic ball bearing with steel cage provides optimal turbo response &
better durability by reducing the shaft-motion - 71mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 2 Options in Turbine Housing
- HP rated at 1150HP at the flywheel
- Suitable engine size: 2.0-6.0L
- Compressor Wheel: 71*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ V-Band
- Turbine Inlet: T4 divided
- Turbine Outlet: 4″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Supplied
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- 2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
| Product Name | PULSAR 7170G Dual Ball Bearing 1150HP 71mm Turbo |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the recommended oil feed and drain setup for the PULSAR 7170G turbo?
The PULSAR 7170G turbo requires a -4AN oil feed flange and a -12AN oil drain. Ensure that the oil drain is O-ring sealed for optimal performance and to prevent leaks.
What engine sizes is the PULSAR 7170G turbo suitable for?
This turbo is suitable for engine sizes ranging from 2.0 to 6.0 litres, making it versatile for various applications within that range.
What are the options for turbine housing with the PULSAR 7170G turbo?
The PULSAR 7170G turbo offers two options for turbine housing: T4 divided with A/R ratios of 0.95 and 1.06. Choose the appropriate housing based on your engine's power goals and application.
What type of compressor and turbine wheels does the PULSAR 7170G turbo feature?
The turbo features a 71mm inducer 10 blade PTG-Aero billet compressor wheel with extended tapered tip technology, and a 9 blade PTG-Aero Inconel 713c turbine wheel, designed for improved efficiency and durability.
Does the PULSAR 7170G turbo include water fittings?
Yes, the PULSAR 7170G turbo comes with water fittings included with the super core, allowing for effective cooling and enhanced performance.
