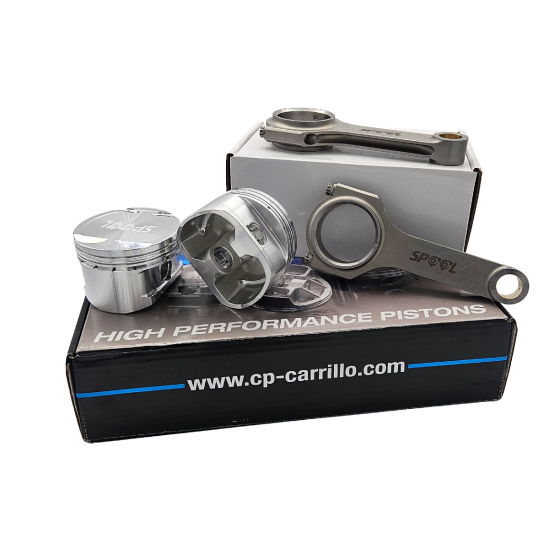

Nissan TB48 Spool H Beam Conrods and CP Forged Pistons
These Pistons are Custom piston If not in stock may take 6-8 weeks.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool TB48 Forged Connecting Rods and custom CP Forged Pistons (Turbo applications)
These custom pistons are available in +.5mm bore size and 9:1 ratio. Turn around time for pistons is generally 6-8 weeks if not in stock. We can get other bore sizes and comp ratios to suit you need (please email)
Pistons come with rings, gudgeon pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
| Product Name | Nissan TB48 Spool H Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | TB48 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the CP forged pistons in the TB48 kit?
Bore clearances for CP forged pistons typically range from 0.0015" to 0.0025" depending on your application and intended use. It's crucial to consult the manufacturer's specifications and adjust based on your engine's operating conditions.
Can I use the Spool TB48 conrods with other piston brands?
Yes, the Spool TB48 conrods can be used with other piston brands as long as the piston pin diameter and overall dimensions are compatible. Ensure that the conrod's big-end and small-end sizes match the specifications of the pistons you intend to use.
What is the recommended torque specification for the ARP2000 bolts on the TB48 conrods?
For the ARP2000 bolts included with the TB48 conrods, the recommended torque specification is around 55 ft-lb when using ARP Ultra-Torque lubricant. Always verify with ARP's latest instructions for the most accurate guidance.
What machining processes are necessary for the TB48 conrods and pistons?
The TB48 conrods may require big-end honing to ensure proper fitment on the crankshaft journals. Additionally, the CP forged pistons will need correct bore clearance and ring gaps set by the engine builder to ensure optimal performance.
How long does it typically take to receive the custom CP pistons if they are not in stock?
If the custom CP pistons are not in stock, the typical turnaround time is around 6-8 weeks. It's advisable to plan your build timeline accordingly to accommodate this lead time.
