Kelford TB48 / 1FZ Beehive Valve Springs & Titanium Retainer Kit KVS223-BT
Kelford beehive valve spring kit for Nissan TB48DE and Toyota 1FZ-FE engines, with 24 springs, 24 titanium retainers and 24 steel spring seats. Designed for high boost and high rpm builds. Installed height and operating clearances must be checked by your engine builder.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

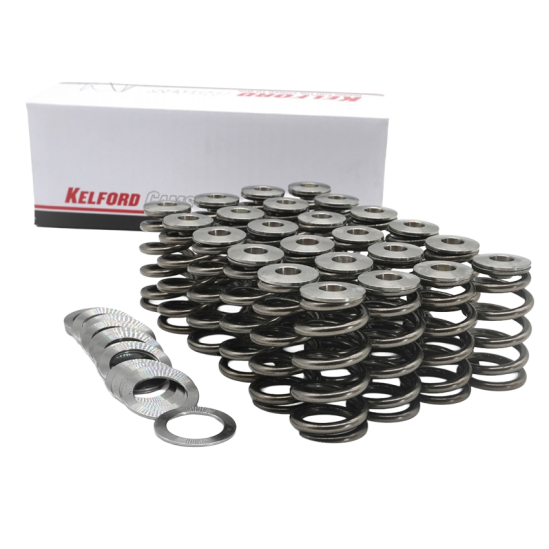

Kelford KVS223-BT Beehive Valve Spring and Titanium Retainer Kit
The Kelford KVS223-BT is a complete valve spring, retainer and seat kit for high boost and high rpm engine builds. Spool Imports lists this kit for Nissan TB48DE and Toyota 1FZ-FE applications.
The beehive springs use silicon chrome spring steel with fatigue resistance and a high frequency design to help control spring surge. Titanium retainers and 4140 steel spring seats are included as a matched package.
Kit contents
- 24 beehive valve springs
- 24 titanium retainers
- 24 spring seats in 4140 steel
Kelford specifications
| Part number | KVS223-BT |
|---|---|
| Seat pressure | 100 lb at 36.8 mm installed height |
| Open pressure | 250 lb at 13.8 mm valve lift |
| Coil bind height | 22.0 mm |
| Maximum valve lift | 14.0 mm, subject to clearance checks and head preparation |
Fitment and installation
Applications: Nissan TB48DE and Toyota 1FZ-FE. Kelford describes this part under its TB48DE range; Spool Imports also lists it for 1FZ-FE. Confirm the installed height, spring pocket location and all operating clearances on your cylinder head.
Kelford advises checking retainer-to-seal clearance for 14 mm lift and sinking the guide and spring register into the head as required, providing an additional 0.5 mm clearance. The spring seat locates on the original spring pocket inner diameter. Heads vary, so measure before machining or assembly.
Have your engine builder confirm spring pressure at the actual installed height and compatibility with the camshaft, valves and remaining valvetrain. The maximum lift figure is not a guarantee of clearance on an unmodified head.
| Product Name | Kelford TB48 / 1FZ Beehive Valve Springs & Titanium Retainer Kit KVS223-BT |
|---|---|
| Brands | Kelford |
| Engine | TB48, 1FZ-FE |
| Make | Nissan, Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Does KVS223-BT suit both TB48 and 1FZ engines?
Spool Imports lists this kit for Nissan TB48DE and Toyota 1FZ-FE engines. Kelford's product page describes the TB48DE application. For either engine, have your engine builder check the installed height, spring seat location and retainer-to-seal clearance on the actual cylinder head.
What is included in the kit?
The kit contains 24 beehive valve springs, 24 titanium retainers and 24 spring seats made from 4140 steel.
What are the spring pressure and lift specifications?
Kelford specifies 100 lb seat pressure at 36.8 mm installed height, 250 lb at 13.8 mm valve lift, 22.0 mm coil bind height and a maximum valve lift of 14.0 mm. These specifications must be checked against the installed height and camshaft in your engine.
Does the kit require cylinder head machining?
Machining may be required. Kelford advises checking retainer-to-seal clearance and sinking the guide and spring register into the head as required to achieve 14 mm valve lift, allowing an additional 0.5 mm clearance. Cylinder heads vary, so your engine builder must measure before assembly.
Can I reuse the standard retainers with these beehive springs?
Use the titanium retainers and steel spring seats supplied with this kit. It is sold as a matched spring, retainer and seat package; do not assume the original retainers are interchangeable.
-
-
-
-
-
