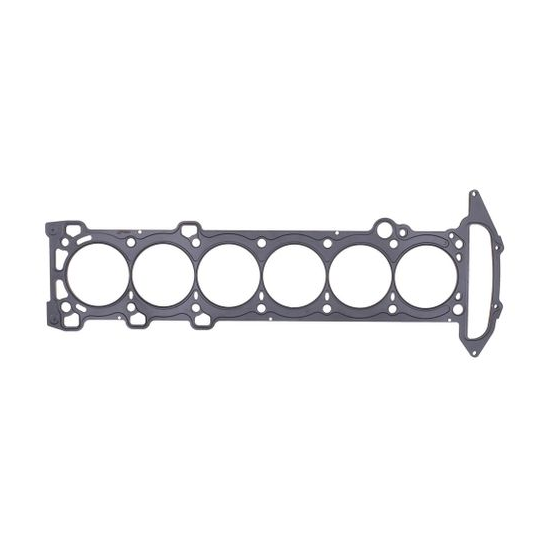

Cometic TB48 Multi Layer Steel Head Gasket .030"
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Available in:
- Bore Size: 100.5mm
- Material: MLS
- Thickness: 0.753mm / 0.030"
- Other thickness options include 0.040", 0.060", 0.092"- email for prices
Cometic Gasket, Inc., is a leading worldwide supplier of shelf stock, custom and short-run gaskets for the performance aftermarket, original equipment and motorsports industries. gaskets to customers worldwide.
MLS (Multi Layer Steel)
The Cometic MLS gasket is comprised of three to five layers of Stainless Steel. Cometic uses Stainless steel for increased strength, its ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a Viton rubber material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250C or 482F.
The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for any kind of head and block combination. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion.
| Product Name | Cometic TB48 Multi Layer Steel Head Gasket .030" |
|---|---|
| Brands | Cometic |
| Engine | TB48 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What surface finish is required for an MLS head gasket?
MLS gaskets require a smooth, consistent RA surface finish on both the block and head. Your machinist should follow the gasket manufacturer’s recommended RA values.
Can I reuse head studs or bolts?
Quality studs may be reused if undamaged. Torque-to-yield bolts are usually single-use. Follow the fastener manufacturer’s recommendations.
What is the recommended bore size for the Cometic TB48 Multi Layer Steel Head Gasket?
The Cometic TB48 Multi Layer Steel Head Gasket is designed for a bore size of 100.5mm. Ensure that your engine's bore matches this specification for optimal sealing performance.
What is the thickness of the Cometic TB48 MLS head gasket?
This head gasket has a thickness of 0.753mm, or 0.030 inches. The thickness is crucial for maintaining the correct compression ratio and ensuring proper sealing.
What materials are used in the construction of the Cometic TB48 head gasket?
The Cometic TB48 head gasket is made from multi-layer stainless steel (MLS) with outer layers coated in Viton rubber. This combination provides strength, corrosion resistance, and the ability to withstand high temperatures.
Can I use the Cometic TB48 MLS head gasket with modified engines?
Yes, the Cometic TB48 MLS head gasket is suitable for modified engines. Its design promotes even torque load across the sealing surface, making it ideal for high-performance applications where bore distortion is a concern.
What temperature can the Viton coating on the Cometic TB48 head gasket withstand?
The Viton coating on the Cometic TB48 head gasket is heat resistant up to 250°C (482°F), making it suitable for high-temperature environments typically found in performance engines.
