Spool Nissan TB48 Stroker Kit
Please NOTE: These Pistons are made to order Allow 5-8 weeks production. Please contact us for availability on this kit, Before purchasing.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

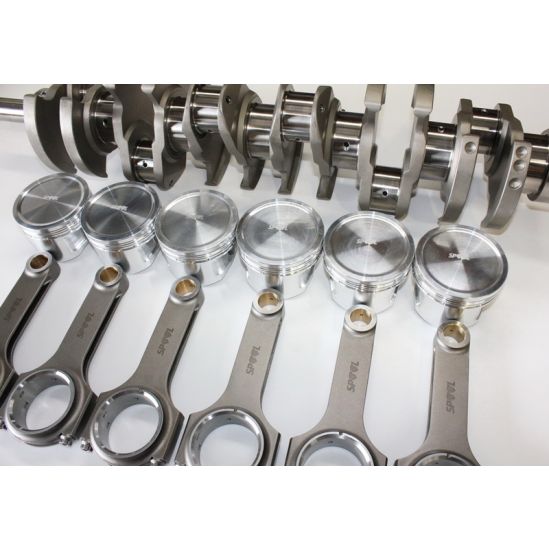

Nissan TB48 Stroker Kit:
- SPOOL Billet 4340 full counter weight 108mm nitrided Stroker Crankshaft
- SPOOL H Beam Forged Conrods with ARP2000 7/16 Bolts
- CP Custom Pistons with rings pins and locks
- Pistons can be ordered in any bore size, any compression ratio and to suit turbo or naturally aspirated applications
This kit increases the cubic capacity from 4.8 Litres to 5.1 Litres
Full billet 4340 Nitrided and Balanced Crankshaft
With the increased cubic capacity from the 108mm stroker crank, big increases in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.
Note:Some cylinder block clearancing is required for installation
| Product Name | Spool Nissan TB48 Stroker Kit |
|---|---|
| Brands | Spool |
| Engine | TB48 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the key features of the Spool Nissan TB48 Stroker Kit?
The Spool Nissan TB48 Stroker Kit includes a full counterweight 108mm nitrided crankshaft, H Beam forged conrods with ARP2000 7/16 bolts, and CP custom pistons that can be tailored to any bore size and compression ratio for turbo or naturally aspirated applications.
What power gains can I expect from the TB48 Stroker Kit?
This kit increases the engine's cubic capacity from 4.8 litres to 5.1 litres, resulting in significant increases in torque and power, particularly in the low to mid-range. However, actual power gains will depend on factors such as tuning, fuel quality, and boost levels.
Is any machining required for the installation of the TB48 Stroker Kit?
Yes, some cylinder block clearancing is required for installation of the kit. Additionally, ensure that the big-end and small-end of the conrods are properly honed to fit the crankshaft and pistons.
How should I specify the pistons when ordering the TB48 Stroker Kit?
Pistons can be ordered in any bore size and compression ratio to suit your specific application, whether turbocharged or naturally aspirated. Be sure to provide your desired specifications when placing your order.
What is the lead time for the Spool TB48 Stroker Kit?
The pistons in this kit are made to order, so please allow 5-8 weeks for production. It's advisable to contact us for availability before purchasing.
