Nissan RB30 (SOHC) Spool Drag Pro I Beam Conrods and CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

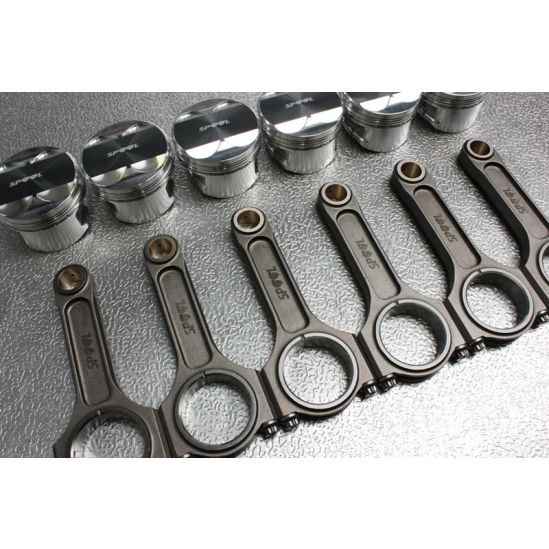

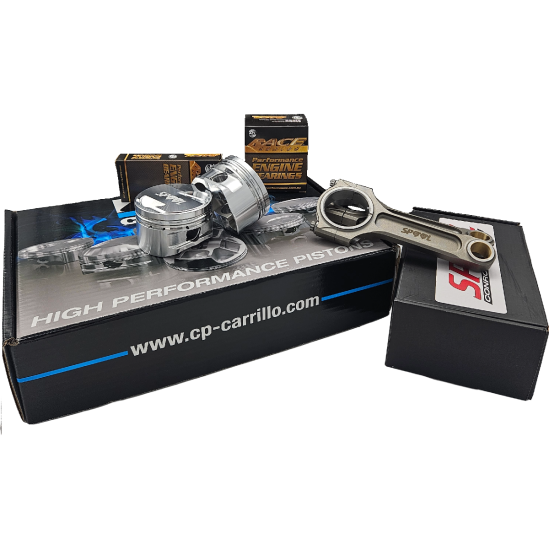

Spool RB30 (SOHC) Drag Pro I Beam Connecting Rods and CP Forged Pistons
Pistons are available in:
- Compression Ratio: 8.5:1 and 9.0:1
- Bore Size: +0.5mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit Conrod for all Nissan RB30 SOHC engines.
- Upgraded ARP2000 7/16 bolts
- Increased strength to the beam
- Increased strength around the fasteners / bolts
- Increased strength around the gudgeon pin
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB30 (SOHC) Spool Drag Pro I Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | RB30ET (SOHC) |
| Make | Holden, Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What compression ratios are available for the CP pistons in the SPL-RB30SOHC-DP kit?
The CP pistons in the SPL-RB30SOHC-DP kit are available in compression ratios of 8.5:1 and 9.0:1. Choose the ratio that best suits your performance goals and tuning setup.
What are the benefits of the upgraded ARP2000 bolts used in the Spool Drag Pro conrods?
The upgraded ARP2000 7/16 bolts provide increased strength around the fasteners, enhancing the overall durability and reliability of the conrods under high-stress conditions typical in performance applications.
Do the conrods require any specific machining before installation?
Yes, the conrods may require big-end or small-end honing to ensure proper fitment due to factory journal and pin size variations. Always check clearances as per your engine builder's specifications.
What is the recommended break-in procedure for the SPL-RB30SOHC-DP kit?
It is recommended to use Joe Gibbs Break in Oil for all new engines to ensure proper lubrication during the critical break-in period. Follow standard break-in procedures for your specific engine setup.
What is the significance of the double pin oilers in the CP pistons?
The double pin oilers in the CP pistons are designed to force-feed oil from the oil ring groove to the wrist pins, ensuring better lubrication and cooling, which is crucial for high-performance applications.
