Nissan RB30ET (SOHC) Rebuild Kit with Spool Drag Pro I Beams and CP Pistons (9.0:1)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

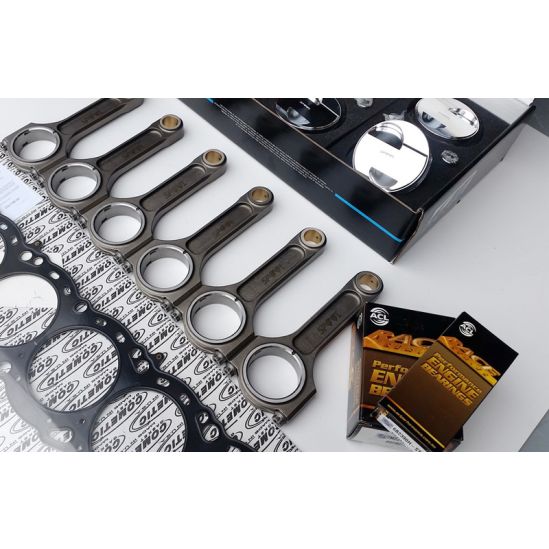

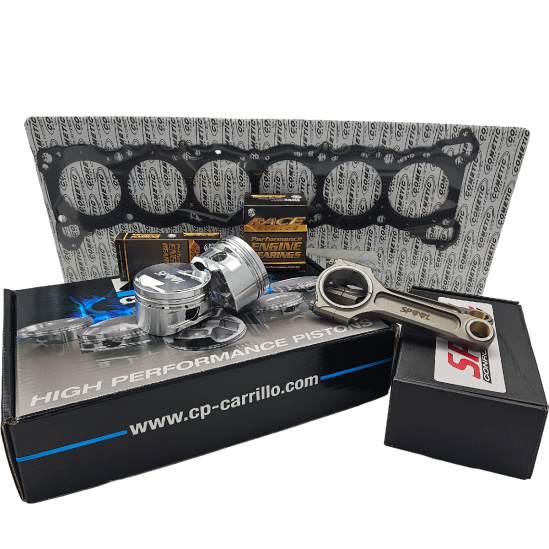

This Rebuild Kit includes the following quality parts:
- Spool Drag Pro I Beam Con Rods with ARP2000 7/16 bolts
- CP Custom 9.0:1 Forged Pistons with 2 Valve reliefs
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Pistons are available in:
- Compression Ratio: 9.0:1
- Bore Sizes: 86.5mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB30ET (SOHC) Rebuild Kit with Spool Drag Pro I Beams and CP Pistons (9.0:1) |
|---|---|
| Brands | Spool |
| Engine | RB30ET (SOHC) |
| Make | Holden, Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended torque specifications for the ARP2000 bolts in the Spool Drag Pro I Beam conrods?
For the Spool Drag Pro I Beam conrods featuring ARP2000 7/16 bolts, the recommended torque specification is around 75 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate guidance.
What machining considerations should I keep in mind when using the CP pistons in this rebuild kit?
When using the CP pistons, ensure that you set the correct bore clearance and ring gaps according to your engine's specifications. This is crucial for optimal performance and longevity. The pistons are designed for an 86.5mm bore, so verify your cylinder dimensions before installation.
Do the Spool Drag Pro I Beam conrods require any specific machining before installation?
Yes, the big-end or small-end of the Spool Drag Pro I Beam conrods may require honing to ensure a proper fit due to factory journal and pin size variations. It's essential to check clearances and perform any necessary machining for reliable operation.
What type of head gasket is included in the rebuild kit and what are the surface finish requirements?
The rebuild kit includes a Cometic MLS head gasket. For optimal sealing, ensure that the cylinder head and block surfaces have the correct RA surface finish as specified by the gasket manufacturer. This will help prevent leaks and ensure a proper seal under high pressure.
What is the compression ratio of the CP pistons included in this kit, and how does it affect performance?
The CP pistons in this kit have a compression ratio of 9.0:1. This ratio is suitable for a balance of power and reliability, particularly in a performance application. However, final performance will depend on factors such as tuning, fuel quality, and boost levels.
