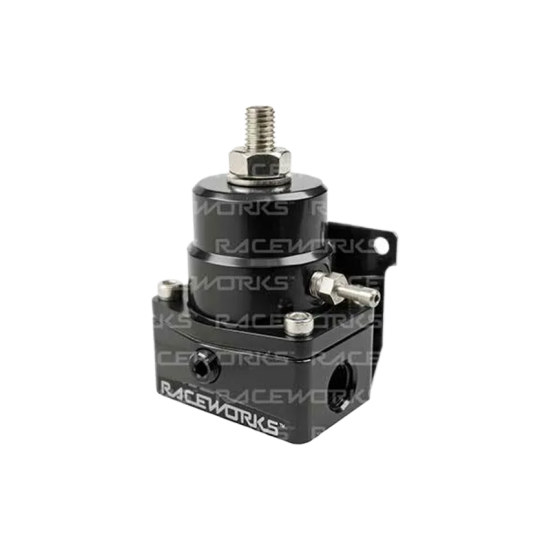

Raceworks Adjustable EFI Fuel Pressure Regulator 700HP - FPR-501BK
The Raceworks FPR-501BK is a fully adjustable, boost-referenced EFI fuel pressure regulator for upgraded and performance fuel systems. Machined from high-grade 6061-T6 billet aluminium, its three-port layout can be used in flow-through or dead-head plumbing arrangements and supports applications up to 700 hp.
Two AN-6 inlet ports and an AN-6 return provide flexible fuel-line routing. Base pressure is adjustable from 40 to 75 psi (2.75 to 5.2 bar), while the 1:1 rising-rate reference maintains fuel pressure in step with boost. It is compatible with E85 and pump fuel and has a rated bypass flow of 550 LPH.
Features
- Supports fuel systems up to 700 hp
- High-grade 6061-T6 billet aluminium construction
- Fully adjustable 40–75 psi base-pressure range
- Boost referenced with a 1:1 rising rate
- Two AN-6 inlet ports and one AN-6 return port
- 1/8-inch NPT gauge port
- 1/16-inch NPT boost-reference port
- Compatible with E85 and pump fuel
- 550 LPH bypass-flow rating
- Mounting bracket and screws supplied
- Universal application
Specifications
| Part number | FPR-501BK |
|---|---|
| Maximum supported power | 700 hp |
| Fuel inlet ports | 2 × AN-6 |
| Fuel return port | AN-6 |
| Gauge port | 1/8-inch NPT |
| Boost-reference port | 1/16-inch NPT |
| Base-pressure range | 40–75 psi (2.75–5.2 bar) |
| Rising rate | 1:1 |
| Bypass rate | 550 LPH |
| Fuel compatibility | E85 and pump fuel |
| Dimensions | 94 mm high × 62 mm wide × 60 mm deep, excluding fittings |
| Fitment | Universal |
Installation Notes
Fuel-system installation should be completed by a suitably qualified person. Select compatible AN-6 hose ends and fittings for the chosen plumbing layout, mount the regulator securely, connect the boost-reference line, then set and verify base pressure with an appropriate gauge. Thoroughly inspect the system for leaks before operation.
| Product Name | Raceworks Adjustable EFI Fuel Pressure Regulator 700HP 3-Port -6AN Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What base-pressure range does the FPR-501BK provide?
It is adjustable from 40 to 75 psi, equivalent to 2.75 to 5.2 bar.
What fuel-line ports does this regulator use?
It has two AN-6 inlet ports and one AN-6 return port, plus a 1/8-inch NPT gauge port.
Is the Raceworks FPR-501BK boost referenced?
Yes. It uses a 1:1 rising rate and has a 1/16-inch NPT boost-reference port.
Can it be used with E85?
Yes. Raceworks specifies compatibility with both E85 and pump fuel.
What is included with the regulator?
The source specifies that a mounting bracket and screws are supplied. Fuel fittings, hoses and a pressure gauge are not stated as included.
