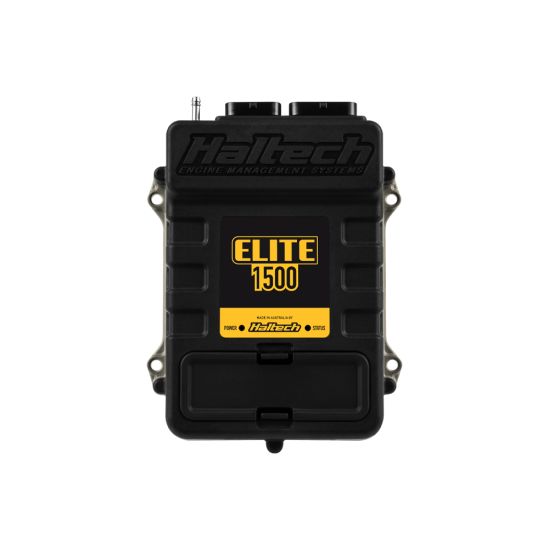

Haltech Elite 1500 ECU + Plug and Pin Set
Includes: Elite 1500 ECU Plug and Pin Set to suit
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
<div class="mt-3 mb-2"><strong>ECU OVERVIEW</strong></div> <div>The Elite 1500 is a versatile, high-performance stand-alone ECU designed for late-model performance and racing applications. Ideal for 4-cylinder, Drive-By-Wire (DBW), or 2-rotor engine setups, as well as EFI conversions and engines with multiple variable camshafts, the Elite 1500 provides advanced control for a wide range of applications.
This rugged ECU features a fully sealed, water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual-channel knock control, and many other advanced features, giving engine calibrators all the tools they need to optimize performance.
The Elite 1500 ECU is now paired with the innovative Nexus Software Programmer (NSP), which offers unprecedented functionality and ease of use. Together, they provide cutting-edge technology for tuners and performance enthusiasts worldwide.</div>
<ul> <li>Supports 1 to 12 Cylinder engines</li> <li>2 Rotor engines</li> <li>Suitable for both naturally aspirated and forced induction setups</li> <li>Load sensing via Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF)</li> <li>Injection patterns: Staged, sequential, semi-sequential, batch, or multipoint</li> <li>Ignition options: Distributor ignition, multi-coil systems, expanded CDI range, or Haltech Multiplex CDI systems</li> <li>Connects to a variety of display dashes and expansion devices via CAN</li> <li>4 x Fuel Injection Outputs</li> <li>4 x Ignition Outputs</li> <li>12 x Digital Outputs</li> <li>10 x Analogue Voltage Inputs</li> <li>4 x Synchronized Pulsed Inputs</li> <li>3 x Dedicated Inputs (Knock, Ignition Switch & Onboard MAP Sensor)</li> <li>2 x Dedicated Engine Position Inputs with support for multiple trigger types</li> <li>Up to 45 channels of Input/Output (I/O) expansion via CAN</li> <li>USB Laptop Communication (Windows)</li> <li>NSP Calibration Software – Intuitive and easy to use</li> <li>Plug and Pins Only AMP 26 & 34 Pin 4 Row 3 Key Superseal Set</li> </ul>
| Product Name | Haltech Elite 1500 ECU + Plug and Pin Set |
|---|---|
| Brands | Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why use a Haltech ECU?
It provides full control of fuel, ignition, boost and safety strategies that a factory ECU cannot manage on a heavily modified engine.
What types of engines can the Haltech Elite 1500 ECU support?
The Haltech Elite 1500 ECU is designed to support a wide range of engine configurations, including 1 to 12 cylinder engines, 2-rotor engines, and both naturally aspirated and forced induction setups. This versatility makes it suitable for various performance and racing applications.
What are the key features of the Elite 1500 ECU?
The Elite 1500 ECU features a fully sealed, water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, dual-channel knock control, and advanced map learning capabilities. It also supports multiple injection patterns and ignition options, providing comprehensive control for engine tuning.
How does the Elite 1500 ECU connect to other devices?
The Elite 1500 ECU can connect to a variety of display dashes and expansion devices via CAN. It also features USB laptop communication for easy tuning and calibration using the NSP Calibration Software.
What is included with the Elite 1500 ECU?
The Elite 1500 ECU package includes the ECU itself along with a Plug and Pin Set designed to suit the ECU's connections, ensuring a reliable and secure installation.
Is the Haltech Elite 1500 suitable for EFI conversions?
Yes, the Haltech Elite 1500 ECU is ideal for EFI conversions, providing advanced control features that facilitate the integration of electronic fuel injection into various engine setups.
-
-
-
-
-
-
-
