Haltech Elite 1500 + Basic Universal Wire-in Harness Kit Length: 2.5m (8')
Outputs: Up to 4 injector and 4 ignition.
Suits: Universal 1-12 cylinder or 2 rotor applications.
Includes: Elite 1500 ECU with DBW and Race Functions. Basic Universal Wire-In Harness. Waterproof USB cap, USB programming cable.
Notes: Does not include fuse and relay box.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

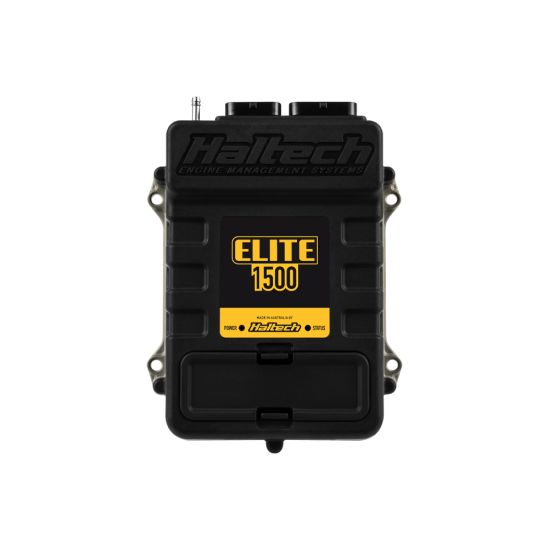

<div class="mt-3 mb-2"><strong>ECU OVERVIEW</strong></div> <div>The Elite 1500 is a versatile, two-connector stand-alone ECU designed for modern performance and racing applications. Ideal for 4-cylinder, Drive-By-Wire (DBW) engines, 2-rotor engines, EFI conversions, and engines with multiple variable camshafts, it offers advanced engine control in a compact, easy-to-install package.
Constructed with a durable, environmentally sealed IP67-rated waterproof case, the Elite 1500 features a variety of powerful functions including drive-by-wire throttle control, intake and exhaust cam control, both short-term and long-term map learning, dual-channel knock control, and more. This ECU provides engine calibrators with the essential tools to fine-tune performance with precision and ease.
Paired with the new Nexus Software Programmer (NSP), the Elite 1500 offers an unprecedented level of functionality and user-friendliness, delivering state-of-the-art technology to tuners and performance enthusiasts worldwide.</div>
<ul> <li>Supports 1 to 12 cylinder engines</li> <li>Compatible with 2-rotor engines</li> <li>Works with both normally aspirated and forced induction setups</li> <li>Load sensing via Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF)</li> <li>Injection patterns include staged, sequential, semi-sequential, batch, or multipoint</li> <li>Supports distributor ignition systems, multi-coil systems, expanded CDI range, and Haltech Multiplex CDI systems</li> <li>Can connect to a wide range of display dashes and expansion devices via CAN</li> <li>4 x Fuel Injection Outputs</li> <li>4 x Ignition Outputs</li> <li>12 x Digital Outputs</li> <li>10 x Analogue Voltage Inputs</li> <li>4 x Synchronized Pulsed Inputs</li> <li>3 x Dedicated Inputs (Knock Sensor, Ignition Switch, Onboard MAP Sensor)</li> <li>2 x Dedicated Engine Position Inputs with comprehensive trigger type support</li> <li>Up to 45 channels of Input/Output (I/O) expansion via CAN</li> <li>USB Laptop Communication (Windows)</li> <li>NSP Calibration Software – Easy to use and intuitive</li> </ul> <div class="mt-3 mb-2"><strong>HARNESS OVERVIEW</strong></div> <div>The Universal Wire-in Harness is perfect for race cars, engine swaps, and custom wiring projects. It features ECU connectors at one end, with unterminated wires at the other, which are color-coded and clearly labeled for easy identification. Simply connect the Haltech ECU to the terminated end, follow the wiring diagram, and complete the engine connections.
Once the wiring is complete, load your base map and you’re ready to get started. The harness includes a detailed wiring diagram, along with the full ECU manual and software on CD or USB key, providing everything you need to ensure a smooth installation and configuration process.</div>
| Product Name | Haltech Elite 1500 + Basic Universal Wire-in Harness Kit Length: 2.5m (8') |
|---|---|
| Brands | Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why use a Haltech ECU?
It provides full control of fuel, ignition, boost and safety strategies that a factory ECU cannot manage on a heavily modified engine.
What types of engines can the Haltech Elite 1500 support?
The Haltech Elite 1500 is designed to support a wide range of engines, including 1 to 12 cylinder configurations and 2-rotor engines. It is suitable for both normally aspirated and forced induction setups, making it versatile for various performance applications.
What is included in the Basic Universal Wire-in Harness Kit?
The Basic Universal Wire-in Harness Kit includes ECU connectors at one end and unterminated, colour-coded wires at the other end for easy identification. It also comes with a detailed wiring diagram, the full ECU manual, and software on CD or USB key to assist with installation and configuration.
Does the Haltech Elite 1500 require any specific wiring for installation?
Yes, the installation of the Haltech Elite 1500 requires proper wiring connections as outlined in the provided wiring diagram. The harness is designed for custom wiring projects, so ensure all connections are made accurately to avoid issues during operation.
What are the key features of the Haltech Elite 1500?
Key features of the Haltech Elite 1500 include drive-by-wire throttle control, intake and exhaust cam control, dual-channel knock control, and support for various injection patterns. It also offers extensive I/O options and compatibility with a range of display dashes and expansion devices via CAN.
Is a fuse and relay box included with the Haltech Elite 1500?
No, the Haltech Elite 1500 package does not include a fuse and relay box. You will need to source these components separately to complete your installation.
