PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo

Name: PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
Brand: Pulsar
SKU: PUL-5855G-770
Price: 1269 AUD
Availability: InStock

Be the first to review this product

AUD$1,153.64

SKU

PUL-5855G-770

Compressor Housing Options

Turbine Housing Options

Quantity:

+ -

Add to Compare

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Details

More Information

DELIVERY & FREIGHT

DISCLAIMER

Faq

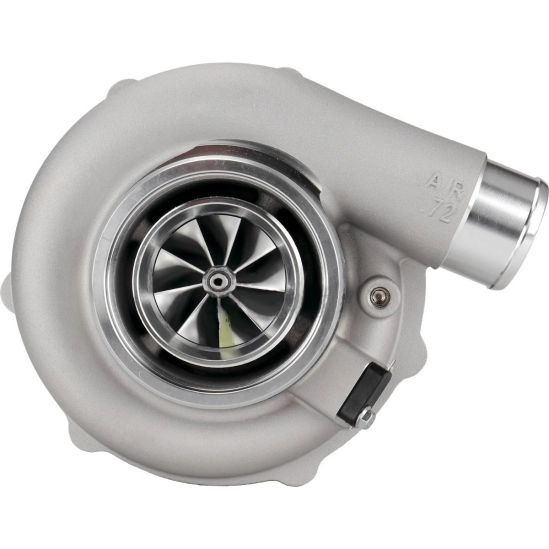

PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo

Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion
9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
9 Blade PTG-Aero Inconel 713c turbine wheel
Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Optional Internal Wastegate (IWG), Billet Actuator (Working pressure 12 psi)

Description

Compressor Wheel: 58*71mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T3 or T4
Turbine Outlet: 3″ V-Band
Water Ports: 2-M14 X 1.5
Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
Oil Outlet: Std T3 Oil Drain Flange
Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
11 options of turbine housing: Dual vband 0.72A/R; Dual vband 0.83A/R; Dual vband 1.01A/R; T3 0.72A/R; T3 0.83A/R; T4 0.82A/R; T4 divided 0.85A/R; Dual vband 0.49A/R IWG; Dual vband 0.72A/R IWG; Dual vband 0.92A/R IWG; T25 0.72A/R IWG

More Information
Product Name	PULSAR 5855G 770HP 58mm Dual Ball Bearing Turbo
Brands	Pulsar

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

How do I choose the right turbo size?

Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.

Why is wastegate placement important?

Poor placement or sizing can cause boost creep or unstable boost control.

What is the maximum power output for the PULSAR 5855G turbo?

The PULSAR 5855G turbo is designed to support up to 770 horsepower. However, actual power output will depend on factors such as engine setup, tuning, fuel quality, and boost levels.

What type of engine applications is the PULSAR 5855G turbo suitable for?

The PULSAR 5855G turbo is versatile and can be used in various performance applications, particularly in four-cylinder and small displacement six-cylinder engines. Ensure compatibility with your specific engine family for optimal performance.

What are the oil and water line requirements for the PULSAR 5855G turbo?

The PULSAR 5855G turbo features a pre-installed -4AN oil inlet restrictor and requires standard T3 oil drain flange for the outlet. It also has two M14 x 1.5 water ports for cooling, which should be connected to a suitable water source.

What are the dimensions of the compressor and turbine wheels on the PULSAR 5855G turbo?

The compressor wheel measures 58mm in diameter with a 71mm inducer, while the turbine wheel has a diameter of 60mm with a 55mm exducer. These dimensions contribute to the turbo's performance characteristics.

What type of inlet and outlet connections does the PULSAR 5855G turbo use?

The PULSAR 5855G turbo has a 4-inch hose for the compressor inlet and a 2-inch hose for the compressor outlet. The turbine inlet can be configured for either T3 or T4 flanges, and the turbine outlet uses a 3-inch V-band connection.
