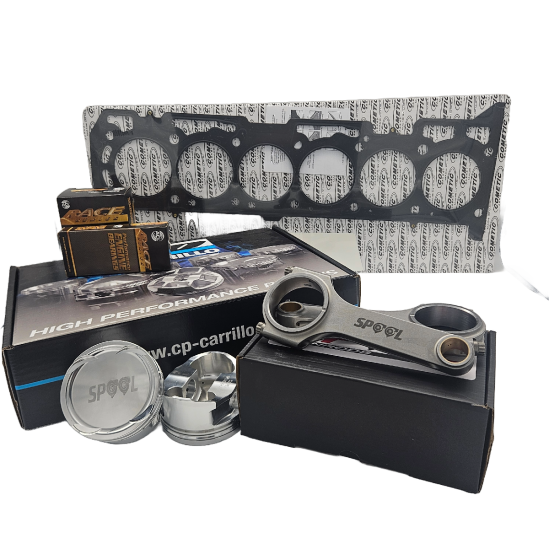

Ford AU SOHC 4.0L Intech Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons
These pistons are custom made to suit each order. Allow 6-8 weeks once ordered.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

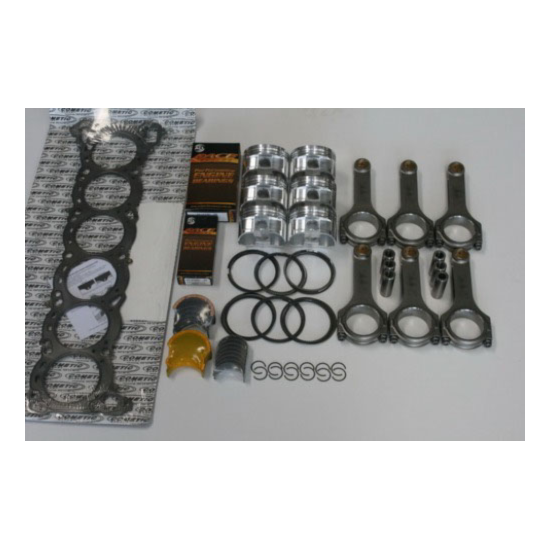

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- Custom CP Forged Pistons (Rings, Pins and Locks Included) - Allow 16-20 weeks
- Cometic MLS Head Gasket
- ACL Race Series - STD or 0.25mm
Pistons are available in:
- Compression Ratio: Custom Pistons so any comp ratio
- Bore Size: Any bore size is available
- Pistons come with rings, gudgeon pins and pin locks
- Once ordered pistons take 6 weeks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Ford AU SOHC 4.0L Intech Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 4.0L Inline 6, AU Inline 6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What compression ratios can I choose for the CP forged pistons in the Ford AU 4.0L rebuild kit?
The CP forged pistons in this rebuild kit are custom made, allowing you to specify any compression ratio that suits your build. It's essential to consider your engine's intended use and tuning when selecting the compression ratio.
What type of fasteners are used in the Spool H Beam conrods, and can I upgrade them?
The Spool H Beam conrods come standard with ARP2000 fasteners. If you're looking for increased strength, you can opt for an upgrade to L19 fasteners, which provide enhanced performance under high-stress conditions.
What are the recommended machining requirements for the CP pistons?
When using CP pistons, it's crucial to set the correct bore clearance and ring gaps according to your engine's specifications. This ensures optimal performance and reliability. Always consult with your engine builder for precise measurements.
How long will it take to receive the CP forged pistons after placing an order?
Once ordered, the CP forged pistons typically take around 6 to 8 weeks to manufacture and deliver. Plan your build timeline accordingly to accommodate this lead time.
What is the significance of the Cometic MLS head gasket included in the kit?
The Cometic MLS head gasket is designed for high-performance applications, providing excellent sealing capabilities under high pressure and temperature conditions. Ensure that the cylinder head and block surfaces have the correct RA surface finish for optimal gasket performance.
