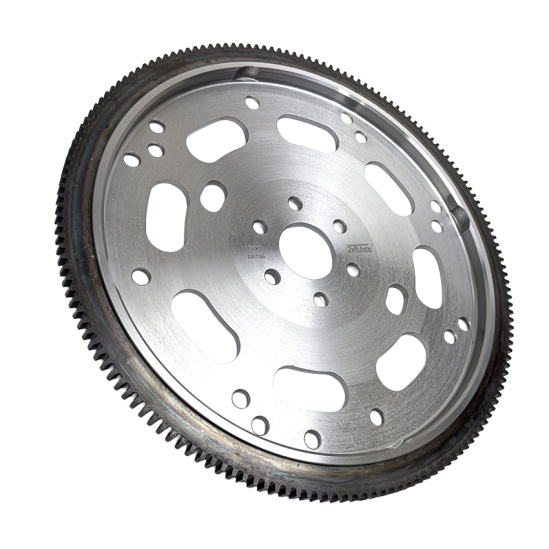

Yella Terra Ford Barra Billet Steel Flexplate – YT9921
Built for high-output Ford Barra applications, the Yella Terra YT9921 billet steel flexplate is a heavy-duty replacement for the factory sheet-metal flexplate used behind BA, BF, FG and FG X 4.0L DOHC inline-six engines. It is designed to provide greater strength and stability under the torsional loads produced by modified turbocharged and naturally aspirated Barra engines.
CNC-machined to factory specifications, the YT9921 uses multiple torque-converter bolt patterns to suit common factory transmissions and selected aftermarket converters. Eight machined slots help reduce rotating mass while increasing airflow around the torque converter. A factory-specification 160-tooth ring gear is supplied fitted, making the assembly ready for installation with the correct longer mounting hardware.
Key features
- Heavy-duty billet steel construction
- CNC-machined for accurate fitment
- Designed for high-power and high-torque Barra applications
- Approximately 10 mm thick around the mounting holes to resist fretting and cracking
- Eight machined slots reduce mass and promote airflow around the converter
- Multiple torque-converter bolt patterns
- Factory-specification 160-tooth ring gear fitted
- Neutral balance
- Meets Yella Terra's stated ANDRA flexplate requirements
Vehicle and transmission fitment
- Ford Falcon BA and BF
- Ford Falcon FG and FG X
- Ford 4.0L DOHC Barra inline-six, turbocharged or naturally aspirated
- Factory BTR 4-speed automatic
- Factory 5-speed automatic
- Factory ZF 6-speed automatic
- Hughes Performance 8-bolt torque converter pattern
Specifications
| Part number | YT9921 |
|---|---|
| Construction | Billet steel |
| Balance | Neutral |
| Ring gear teeth | 160 |
| Outside diameter | 301 mm |
| Crank register diameter | 44.46 mm |
| Crank bolt holes | 6 |
| Weight | 5.3 kg |
| Flexplate thickness at crank mounting point | Approximately 7.8–8.0 mm |
| Manufacturer torque setting | 70 ft-lb |
Installation note: The flexplate requires crank and torque-converter bolts approximately 10 mm longer than standard. These bolts are not included. Installation and fastener selection should be completed by a suitably qualified technician.
Yella Terra also advises that enlarging the crank holes to 15/32 inch can allow fitment to early Ford 144, 170, 221 and 250ci six-cylinder engines. This modification should only be assessed and performed by an experienced engine builder.
| Product Name | Yella Terra Ford Barra Billet Flexplate BA–FG X 4/5/6-Speed (YT9921) |
|---|---|
| Brands | Yella Terra |
| Engine | 4.0L Inline 6, Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Which Ford transmissions does the Yella Terra YT9921 flexplate suit?
It is drilled for the factory BTR 4-speed, factory 5-speed and ZF 6-speed automatic torque-converter patterns, as well as the Hughes Performance 8-bolt converter pattern.
Does the YT9921 suit turbo and naturally aspirated Barra engines?
Yes. Yella Terra specifies it for turbocharged and naturally aspirated Ford 4.0L DOHC Barra inline-six applications across BA, BF, FG and FG X models.
Are mounting bolts included with the flexplate?
No. Yella Terra states that crank and torque-converter bolts approximately 10 mm longer than standard are required, and these are not included.
What are the main specifications of the YT9921?
The flexplate is neutral balanced, has a 160-tooth ring gear, a 301 mm outside diameter, a 44.46 mm crank register and an assembled weight of approximately 5.3 kg.
