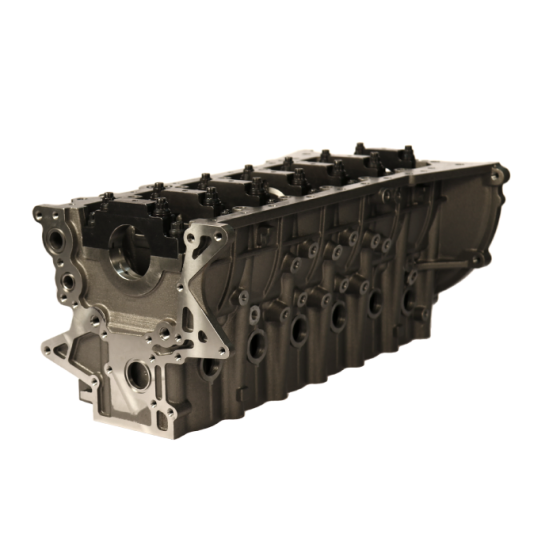

DART Toyota 2JZ Iron Eagle Engine Block – 11mm Head Stud Machining
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Suitable for:
- Toyota 2JZ-GTE
- Toyota 2JZ-GE
- High-performance street, drag racing, drift, time attack and circuit applications
Specifications:
Material: 220 BHN Cast Iron
Bore: 86.00mm (3.3858")
Maximum Bore: 88.00mm (3.4645")
Maximum Stroke: 94.00mm (Additional rod clearance may be required)
Deck Height: 219.08mm (8.625")
Deck Thickness: 19.05mm (0.750")
Head Stud Size: 11mm Blind Head Stud Holes
Main Caps: Billet Steel 4-Bolt Main Caps (#1-6)
Weight: 162lb (73.5kg)
The DART Iron Eagle Toyota 2JZ Engine Block is the ultimate foundation for extreme horsepower builds. Designed from a clean-sheet approach, the Iron Eagle addresses the known limitations of the factory 2JZ block while maintaining compatibility with OEM components and accessories.
Manufactured from premium 220 BHN cast iron, the block features significantly thicker cylinder walls, deck surfaces and outer case walls to provide exceptional strength under extreme cylinder pressures and high boost. Combined with billet steel 4-bolt main caps on cylinders 1-6, the Iron Eagle block is engineered to support engine combinations exceeding 2,000 horsepower.
Supplied with 11mm blind head stud holes, this version provides improved head gasket sealing by eliminating water jacket intrusion through the head stud holes. Additional performance features include revised oil passages for improved oil flow, scalloped water jackets for enhanced cooling, screw-in freeze plugs and provisions for OEM accessories, making it the ideal choice for serious street, drag, drift and motorsport applications.
Features:
- Genuine DART Iron Eagle Toyota 2JZ engine block.
- Manufactured from high-strength 220 BHN cast iron.
- Precision machined with 11mm blind head stud holes.
- Billet steel 4-bolt main caps on cylinders #1-6 for maximum bottom-end strength.
- Designed to support 2,000HP+ engine combinations.
- Extra-thick siamese cylinder bores for increased rigidity.
- Reinforced deck surface for superior head gasket sealing.
- Extra-thick outer block walls for maximum strength.
- Revised oil passages for improved lubrication and 94mm stroke clearance.
- Scalloped water jackets for improved coolant flow.
- Machined for piston oil squirters.
- Screw-in freeze plugs for improved durability.
- Accepts OEM oil pan, oil filter mount, water pump, starter and rear main seal.
- Compatible with wet or dry sump oiling systems.
- Ideal for extreme street, drag racing, drift and circuit racing applications.
| Product Name | DART Toyota 2JZ Iron Eagle Engine Block – 11mm Head Stud Machining |
|---|---|
| Brands | Dart |
| Engine | 2JZ, 2JZ-GTE |
| Make | Toyota |
