CP Bullet Race LS7 Pistons (12° Heads)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

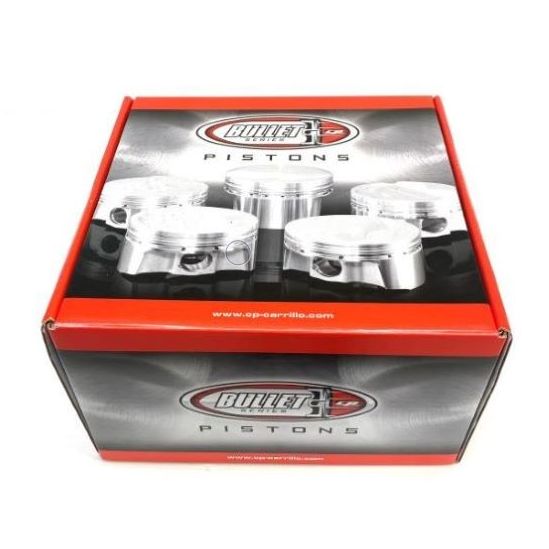

CP Bullet Race Series Pistons
Suit Chevrolet LS7 (fits 12° heads)
| Part Number | Bore | Stroke | Rod | Comp Height | Head Type | Head CC | Dome Height | Dish / Dome | C/R | Pin Dia | VR Depths | Type | VR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLSR1200-005 | 4.130 | 4.000 | 6.125 | 1.115 | LS7 | 67.5 | .175 | +5cc | 12.9:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1200-010 | 4.135 | 4.000 | 6.125 | 1.115 | LS7 | 67.5 | .175 | +5cc | 12.9:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1200-030 | 4.155 | 4.000 | 6.125 | 1.115 | LS7 | 67.5 | .175 | +5cc | 13.0:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1200-STD | 4.125 | 4.000 | 6.125 | 1.115 | LS7 | 67.5 | .175 | +5cc | 12.9:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1201-005 | 4.130 | 4.125 | 6.125 | 1.055 | LS7 | 66.5 | .175 | +5cc | 13.3:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1201-010 | 4.135 | 4.125 | 6.125 | 1.055 | LS7 | 66.5 | .175 | +5cc | 13.4:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1201-030 | 4.155 | 4.125 | 6.125 | 1.055 | LS7 | 66.5 | .175 | +5cc | 13.5:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1201-STD | 4.125 | 4.125 | 6.125 | 1.055 | LS7 | 66.5 | .175 | +5cc | 13.3:1 | .927 x 2.250 | .220 / SP | Dome | 2 VR's |
| BLSR1203-005 | 4.130 | 4.000 | 6.125 | 1.115 | LS7 | 70.0 | .163 | -25cc | 9.0:1 | .927 x 2.250 | .220 / SP | Dish | 2 VR's |
| BLSR1203-010 | 4.135 | 4.000 | 6.125 | 1.115 | LS7 | 70.0 | .163 | -25cc | 9.2:1 | .927 x 2.250 | .220 / SP | Dish | 2 VR's |
| BLSR1203-030 | 4.155 | 4.000 | 6.125 | 1.115 | LS7 | 70.0 | .163 | -25cc | 9.3:1 | .927 x 2.250 | .220 / SP | Dish | 2 VR's |
| BLSR1203-STD | 4.125 | 4.000 | 6.125 | 1.115 | LS7 | 70.0 | .163 | -25cc | 9.0:1 | .927 x 2.250 | .220 / SP | Dish | 2 VR's |
| BLSR1204-005 | 4.130 | 4.000 | 6.125 | 1.120 | LS7 | 70.0 | FT | -4.6cc | 11.2:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1204-010 | 4.135 | 4.000 | 6.125 | 1.120 | LS7 | 70.0 | FT | -4.6cc | 11.2:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1204-030 | 4.155 | 4.000 | 6.125 | 1.120 | LS7 | 70.0 | FT | -4.6cc | 11.3:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1204-STD | 4.125 | 4.000 | 6.125 | 1.120 | LS7 | 70.0 | FT | -4.6cc | 11.2:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1205-005 | 4.130 | 4.125 | 6.125 | 1.055 | LS7 | 70.0 | FT | -4.6cc | 11.4:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1205-010 | 4.135 | 4.125 | 6.125 | 1.055 | LS7 | 70.0 | FT | -4.6cc | 11.5:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1205-030 | 4.155 | 4.125 | 6.125 | 1.055 | LS7 | 70.0 | FT | -4.6cc | 11.6:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
| BLSR1205-STD | 4.125 | 4.125 | 6.125 | 1.055 | LS7 | 70.0 | FT | -4.6cc | 11.4:1 | .927 x 2.250 | .220 / .161 | FT | 2 VR's |
Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact sales@spoolimports.com
Features Included:
- Pistons manufactured from 2618 alloy for strength and durability
- Balanced to + or – 1 gram
- Dual forced pin oilers
- Contact reduction grooves
- Accumulator Grooves
- Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
- Forged side relief
- Chromoly wrist pins with wire locks
- FEA designed forging
- Tight tolerances
- USA made
| Product Name | CP Bullet Race LS7 Pistons (12° Heads) |
|---|---|
| Brands | CP Carrillo |
| Engine | GM / LS, Chev LS7 |
| Make | Chevrolet, GM, Holden, LS Chev |
