GM / Holden LS3 / L92 / L99 6.2L-Block Gen IV 4.000" Stroker Rebuild Kit with Spool Conrods and CP Bullet Pistons
LS3 / L92 / L99 6.2L Gen IV block-family rebuild kit for 4.000-inch stroke, with CP Bullet pistons, 6.125-inch Spool conrods, ACL Race Series bearings and two Cometic MLS head gaskets. Select the measured bore, piston specification and optional upgrades. Crankshaft not included.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
LS3 / L92 / L99 6.2L 4.000-inch Stroker Rebuild Kit
A forged rebuild package for the LS3 / L92 / L99 6.2L Gen IV LS block family with a 4.065-inch nominal bore. Match the selected piston bore and crown design to your measured block and intended build.

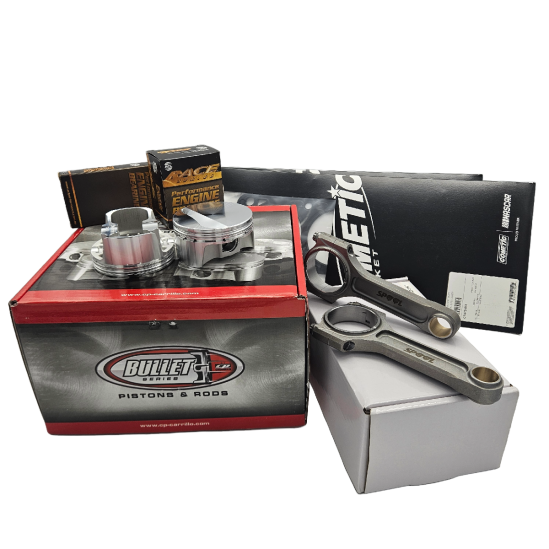

Kit inclusions
- CP Bullet forged pistons with matching rings, pins and locks; selected BLSR Race options carry a displayed additional charge.
- Spool 6.125-inch conrods with ARP2000 bolts as standard, with the listed rod and bolt upgrades.
- ACL Race Series conrod and main bearings in the selected sizes.
- Two Cometic MLS 4.130-inch bore, .051-inch compressed-thickness head gaskets (C5317-051).
This version requires a compatible 4.000-inch stroker crankshaft. The crankshaft is not supplied, and block, camshaft, piston-skirt and windage-tray clearances must be checked throughout rotation. The stated 6.0L or 6.2L size identifies the original block family, not the finished stroked displacement. A crankshaft, camshaft, lifters and AFM/VVT conversion parts are not included.
Engine and head compatibility
Engine codes group the nominal block family. They do not replace checking the actual block, head casting, chamber shape, deck height, rod/pin dimensions, crank journals and bearing clearances. These pistons are for the specified LS 15-degree/L92 head geometry. Dedicated AFR/Brodix 12-degree, LS7/LSX, other rod lengths or pin sizes, and 4.125-inch-and-larger big-bore combinations are outside this listing.
Piston dimensions
All options below use 6.125-inch rods and .927 x 2.250-inch pins. BLS options use the listed 1.5/1.5/3.0mm rings; BLSR Race options use 1.2/1.2/3.0mm rings. Use the matching supplied ring set.
| CP part number | Bore (in) | Stroke (in) | Rod (in) | Compression height (in) | Pin diameter x length (in) | Rings (mm) |
|---|---|---|---|---|---|---|
| BLS1007-STD | 4.065 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1115-STD | 4.065 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1123-STD | 4.065 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1131-STD | 4.065 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1137-STD | 4.065 | 4.000 | 6.125 | 1.115 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1142-065 | 4.065 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1007-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1115-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1123-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1137-005 | 4.070 | 4.000 | 6.125 | 1.115 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1142-070 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1007-010 | 4.075 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1115-010 | 4.075 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1123-010 | 4.075 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1137-010 | 4.075 | 4.000 | 6.125 | 1.115 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1142-075 | 4.075 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1148-075 | 4.075 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1007-015 | 4.080 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1007-080NA | 4.080 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1119-015 | 4.080 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLS1128-015 | 4.080 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.5 / 1.5 / 3.0 |
| BLSR1007-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.2 / 1.2 / 3.0 |
| BLSR1115-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.2 / 1.2 / 3.0 |
| BLSR1123-005 | 4.070 | 4.000 | 6.125 | 1.110 | .927 x 2.250 | 1.2 / 1.2 / 3.0 |
Head and full gasket selection
The 4.130-inch gasket opening is larger than the listed cylinder bores. Your builder must also confirm chamber/bore-edge coverage, deck and sleeve geometry, surface finish and the required compressed thickness. No additional full engine gasket set is offered on this kit. The LS2-only SPG-F-LS2 set is not represented as suitable for LS3, L92 or L99.
Machining and assembly
Have the engine builder approve the final bore before ordering or machining. The presence of an oversize piston in the selector does not establish that an original-liner block can safely accept it. Measure wall/liner condition, piston-to-wall clearance, deck clearance, valve clearance and ring gaps, and use the instructions supplied with the exact parts. Compression ratio must be calculated using the actual chamber volume, piston crown, deck position and compressed gasket thickness.
Choose pin, conrod and bearing upgrades for the complete engine combination. Follow the exact rod/fastener instructions rather than a generic torque or stretch value.
| Product Name | GM / Holden LS3 / L92 / L99 6.2L-Block Gen IV 4.000" Stroker Rebuild Kit with Spool Conrods and CP Bullet Pistons |
|---|---|
| Brands | Spool |
| Engine | LS |
| Make | Chevrolet, GM, Holden, LS Chev |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Which engines does this stroker kit cover?
It groups the LS3 / L92 / L99 6.2L Gen IV LS block family with a 4.065-inch nominal bore. Engine codes group the nominal block family. They do not replace checking the actual block, head casting, chamber shape, deck height, rod/pin dimensions, crank journals and bearing clearances. These pistons are for the specified LS 15-degree/L92 head geometry. Dedicated AFR/Brodix 12-degree, LS7/LSX, other rod lengths or pin sizes, and 4.125-inch-and-larger big-bore combinations are outside this listing.
Is a crankshaft included?
This version requires a compatible 4.000-inch stroker crankshaft. The crankshaft is not supplied, and block, camshaft, piston-skirt and windage-tray clearances must be checked throughout rotation. The stated 6.0L or 6.2L size identifies the original block family, not the finished stroked displacement. The crankshaft is not included.
Which piston bores can I select?
4.065, 4.070, 4.075, 4.080 inches. Have the engine builder approve the final bore before ordering or machining. The presence of an oversize piston in the selector does not establish that an original-liner block can safely accept it. Measure wall/liner condition, piston-to-wall clearance, deck clearance, valve clearance and ring gaps, and use the instructions supplied with the exact parts. Compression ratio must be calculated using the actual chamber volume, piston crown, deck position and compressed gasket thickness.
What is different about the BLSR Race options?
The listed BLSR pistons use a 1.2/1.2/3.0mm ring pack. The listed BLS pistons use 1.5/1.5/3.0mm rings. The selector shows the additional BLSR price. Choose the crown, compression height and bore for your build, not the prefix alone.
Which head gaskets are included?
Two Cometic MLS C5317-051 head gaskets with a 4.130-inch bore opening and .051-inch compressed thickness. Verify chamber and bore-edge coverage, deck and sleeve geometry and the required thickness with your builder.
Can I add a full gasket set?
No additional full engine gasket set is offered on this kit. The LS2-only SPG-F-LS2 set is not represented as suitable for LS3, L92 or L99.
Will the kit retain or delete AFM or VVT?
It does not include an AFM/DOD delete kit, camshaft, lifters or VVT conversion parts. The engine builder must check the valvetrain configuration and piston-to-valve clearance for the actual engine.
Do the bearing sizes or piston choice guarantee final compression and clearance?
No. Measure crank journals, housing bores, piston-to-wall and piston-to-valve clearances. Calculate compression using the actual chamber, crown, deck clearance and head gasket. Follow the supplied CP, Spool, ARP and ACL instructions.
