Walbro 525LPH In Tank Fuel Pump Kit E85 (F90000285)

USD$155.95
In stock
SKU
F90000285
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Description:

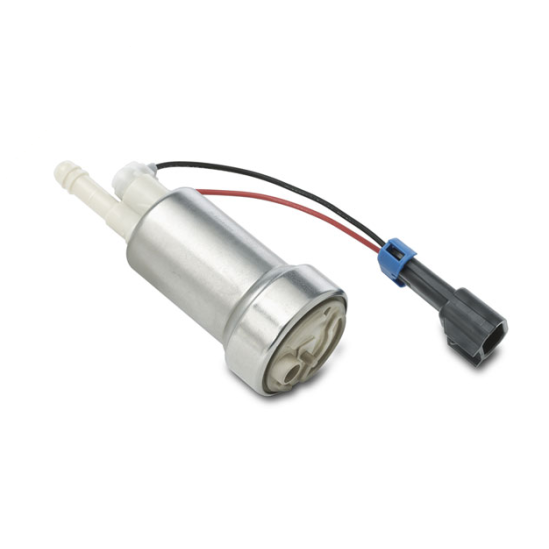

Walbro 525LPH In Tank Fuel Pump to suit standard unleaded fuels & E85. This kit includes the fuel pump, wiring harness & pickup filter. These are a Genuine TI Automotive/Walbro unit.


An extremely popular item which offers outstanding performance whilst retaining a quiet operation. Rated from 600-900HP depending on fuel pressure & pump voltage. These hold an exceptional level of fuel flow at higher pressures, where the smaller Walbro 460 drops off.

Suitable for fitment to many makes and models with minor modification to the fuel pump assembly.

KEY SPECS
MFG. Part # F90000285
Brand Walbro
Electric Fuel Pump Type In Tank
Free Flow Rate 139 GPH / 525 LPH
GENERAL
Maximum Pressure 100 psi
PSI Flow Rate 123 GPH at 40 PSI
Inline No
Fuel System Type EFI | Carb
Fuel Type Gasoline | E85
Electric Fuel Pump Outlet Fitting(s) 3/8" Hose Barb
Voltage 13.5 volts
Horsepower Rating (Naturally Aspirated) 900 HP
Horsepower Rating (Force Induction) 700 HP
Finish Natural
Fuel Pressure Regulator Included No
Regulator Required Yes
Sending Unit Included No
Fuel Filter Included No
Fuel Line Included No
Clamps Included No
Gasket(s) Included No
Wiring Harness Included No
Mounting Bracket Included No
Mounting Hardware Included No
Overall Length 131 mm
Overall Diameter 50 mm
Sold in Quantity Each
Notes Designed for high performance engines exceeding 900 HP NA / 700 HP Forced Induction
GTIN Code 086235592855
More Information
Product Name Walbro 525LPH In Tank Fuel Pump Kit E85 (F90000285)
Brands Walbro
