Walbro 525LPH In Tank Fuel Pump Kit E85 (F90000285)

Walbro 525LPH In Tank Fuel Pump Kit E85 (F90000285)

Walbro 535LPH In Tank Fuel Pump Kit E85 (F90000295)

*Please note that the 535 pump does not have inbuilt check valves*

Availability: In stock


*Please note that the 535 pump does not have inbuilt check valves*

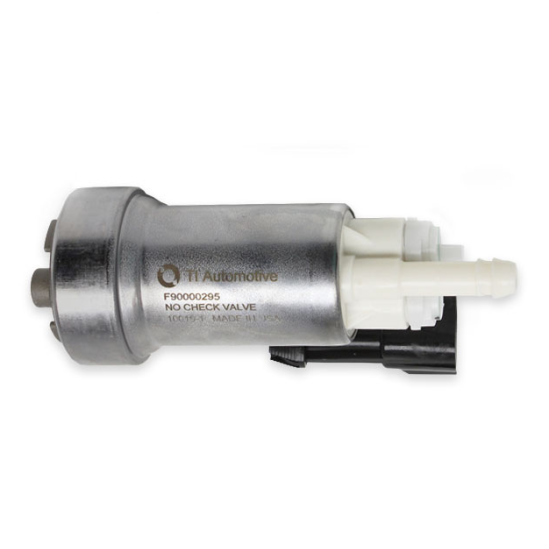

Walbro 535LPH In Tank Fuel Pump to suit standard unleaded fuels & E85. This kit includes the fuel pump, wiring harness & pickup filter. These are a Genuine TI Automotive/Walbro unit.

An extremely popular item which offers outstanding performance whilst retaining a quiet operation. Rated from 600-900HP depending on fuel pressure & pump voltage. These hold an exceptional level of fuel flow at higher pressures, where the smaller Walbro 460 drops off. The 535LPH has no one way valve to allow for higher flow over the 525, the only downside to this is if you're running two of these pumps you will need separate check valves.

Suitable for fitment to many makes and models with minor modification to the fuel pump assembly.


MFG. Part # F90000295
Brand Walbro
Electric Fuel Pump Type In Tank
Free Flow Rate 141 GPH / 535 LPH
Maximum Pressure 100 psi
PSI Flow Rate 130 GPH at 40 PSI
Inline No
Fuel System Type EFI | Carb
Fuel Type Gasoline | E85
Electric Fuel Pump Outlet Fitting(s) 3/8" Hose Barb
Voltage 13.5 volts
Horsepower Rating (Naturally Aspirated) 900 HP
Horsepower Rating (Force Induction) 800 HP
Finish Natural
Fuel Pressure Regulator Included No
Regulator Required Yes
Sending Unit Included No
Fuel Filter Included No
Fuel Line Included No
Clamps Included No
Gasket(s) Included No
Wiring Harness Included No
Mounting Bracket Included No
Mounting Hardware Included No
Overall Length 131 mm
Overall Diameter 50 mm
Sold in Quantity Each
GTIN Code 086235592954
More Information
Product NameWalbro 535LPH In Tank Fuel Pump Kit E85 (F90000295)
MakeChevrolet, Chrysler, Ford, GM, Holden, Isuzu, LS Chev, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
