Spool Black Stainless Steel Braided Hose - AN-8 - 7/16" 11.1mm/ 11/16" 17.1mm

Trade and quantity enquiries welcome. Phone 07 5645 1335 8am to 2pm AET or email [email protected]
AUD$38.18
In stock — ships now
SKU
SF-0721B-8-M
+ -
Add to Wish List Share

Copy Link

AfterPay, Zip, Klana

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

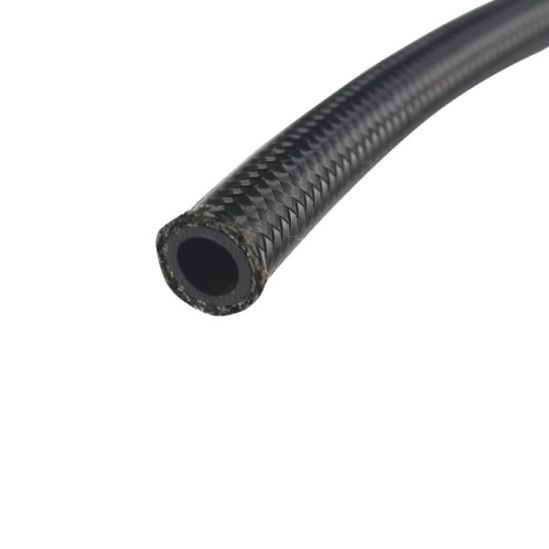

SPOOL BLACK STAINLESS STEEL BRAIDED HOSE

Spool Black Stainless Steel Braided Hose - AN-8 - 7/16" 11.1mm/ 11/16" 17.1mm



Inner Material: CPE synthetic rubber
Outer Material: Stainless steel
Size: AN4 to AN20
Temperature: -40°C to 150°C
Pressure: 6000PSI
Usage: Tuning Parts, Oil, e85, Fuel Line



Nylon fiber and stainless steel braid cover for excellent flexibility and resistance to abrasion. Outer nylon braided has excellent inflaming and is safer to use.

If you need something that is lightweight, Nylon braided lightweight hose is available.

The braided nylon outer shield protects the hose when it rubs on the engine or other car parts, inner core is stainless steel. It is safe in temperatures from -40 degrees Fahrenheit to 150 degrees Fahrenheit.

  • Inner: Combined with a reinforced Chlorinated Polyethylene (CPE) synthetic rubber liner with a nylon inner braid
  • Outer: Constructed with a stainless steel outer braid, resists abrasion and corrosion
  • For use with fuel systems, methanol, oils, lubricants, coolant systems, and vacuum applications
  • Minimum temperature -40°C, Maximum temperature 150°C



More Information
Product Name Spool Black Stainless Steel Braided Hose - AN-8 - 7/16" 11.1mm/ 11/16" 17.1mm
Brands Spool

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

If you are outside of Australia, you are responsible for any duty or taxes charged by your government."

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

What is the difference between nylon and stainless braided hose?

Nylon braided hose is lighter and easier to work with. Stainless is more abrasion-resistant and suited to harsher environments.

How do I correctly assemble AN hose ends?

Cut the hose square, clean debris, and follow the fitting manufacturer’s assembly instructions carefully to avoid leaks.

What applications is the Spool Black Stainless Steel Braided Hose suitable for?

The Spool Black Stainless Steel Braided Hose is designed for use in fuel systems, including E85, oils, lubricants, coolant systems, and vacuum applications. Its robust construction makes it suitable for high-performance tuning parts.

What are the pressure and temperature ratings of this hose?

This hose has a maximum pressure rating of 6000 PSI and can operate within a temperature range of -40°C to 150°C. This makes it versatile for various automotive applications.

How does the construction of this hose enhance its durability?

The hose features a reinforced Chlorinated Polyethylene (CPE) synthetic rubber liner with a nylon inner braid, covered by a stainless steel outer braid. This design provides excellent flexibility, abrasion resistance, and protection against corrosion.

What size fittings are compatible with the AN-8 hose?

The Spool Black Stainless Steel Braided Hose is AN-8 size, which corresponds to a nominal inner diameter of 7/16 inch (11.1mm) and an outer diameter of 11/16 inch (17.1mm). Ensure to use AN-8 fittings for proper connection.

Is this hose suitable for high-temperature applications?

Yes, this hose can handle temperatures up to 150°C, making it suitable for high-temperature applications commonly found in performance engines. However, always ensure that the specific application does not exceed this limit.
