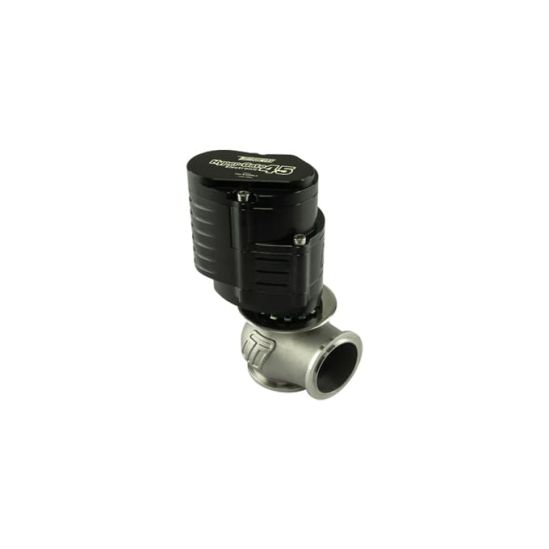

Turbosmart GenV Electronic HyperGate45 External Wastegate
FREE Haltech Direct Current Motor Driver
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Turbosmart’s Patent Pending, eWG45 is a fully electronic actuated 45mm wastegate – Built on the successful, class leading GenV HyperGate45 architecture, now with the kind of control never seen before.
Starting with a Turbosmart’s GenV wastegate body, you can be confident the mounting orientation will match your existing manifold & outlet hardware. The GenV Hypergate45 already had class leading flow capacity & heat handling characteristics. Now featuring the Turbosmart Patent Pending eWG actuator system, you can be sure of unparalleled control aswell.
There are no springs, no hoses and no boost reference signal, nor any of the limitations associated with any of them. Gone are ‘Minimum’ boost levels associated with base spring pressure or the heat related issues with hoses. If your manifold priority is good enough, you can set your boost anywhere from zero up to ‘All of it’ – All from your laptop or tuning interface.
Available in
40mm CompGate40 eWG – TS-0552-1502
45mm HyperGate45 eWG –TS-0553-1502
50mm ProGate50 eWG – TS-0554-1502
60mm PowerGate60 eWG –TS-0555-1502
Features
Class Leading, CFD & Bench Validated Flow Performance
Nitronic 60 Valve Guide & High Temp 347 SS Body
Liquid Cooled, Electronic Actuator
Strap Type V-band clamps
User Adjustable Actuator Position
Onboard Analog 0-5V Wastegate Position Sensor
Onboard Analog 0-5V Actuator Temperature Sensor
| Product Name | Turbosmart GenV Electronic HyperGate45 External Wastegate |
|---|---|
| Brands | Turbosmart |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What are the key features of the Turbosmart GenV Electronic HyperGate45?
The Turbosmart GenV Electronic HyperGate45 features a fully electronic actuator system, eliminating the need for springs and hoses. It offers unparalleled control over boost levels, allowing adjustments from zero to maximum boost via a laptop or tuning interface. The wastegate is built with a high-temperature 347 stainless steel body and Nitronic 60 valve guide, ensuring excellent durability and heat handling.
How does the electronic actuator improve wastegate performance?
The electronic actuator in the HyperGate45 provides precise control over the wastegate position, allowing for rapid response to boost changes without the limitations of traditional spring-based systems. This results in improved boost control, reduced turbo lag, and the ability to maintain optimal boost levels across a wide range of operating conditions.
What installation considerations should I keep in mind for the HyperGate45?
When installing the HyperGate45, ensure that the mounting orientation matches your existing manifold and outlet hardware. The wastegate should be positioned for optimal flow and accessibility for wiring. Additionally, consider the need for a compatible tuning interface to adjust the actuator settings effectively.
Can I use the HyperGate45 with my existing turbo setup?
Yes, the HyperGate45 is designed to integrate with various turbo setups. However, ensure that your manifold can accommodate the 45mm wastegate and that your engine management system is capable of controlling the electronic actuator. Proper tuning is essential to maximise performance and reliability.
What sensors are included with the HyperGate45, and how do they enhance performance monitoring?
The HyperGate45 comes with onboard analog 0-5V sensors for both wastegate position and actuator temperature. These sensors allow for real-time monitoring of the wastegate's operation and temperature, providing valuable data for tuning and ensuring optimal performance and reliability during operation.
-
-
-
-
-
