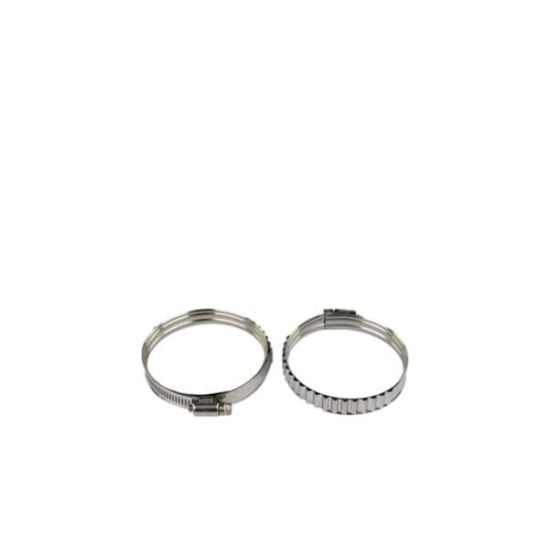

Turbosmart TS Constant Tension Clamps 2.500-3.375"
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
No more cut or bruised silicon hose thanks to this unique design that allows for the hose to expand and contract through heat cycles, while maintain perfect tension.
Click HERE for the full Range of Turbosmart Silicon and Clamps
Includes 2 Clamps
Available In
28-38mm (1.125-1.500”) -TS-HCT-M033
35-48mm (1.375-1.875”) –TS-HCT-M042
41-60mm (1.625-2.375”) –TS-HCT-M050
50-73mm (1.970-2.875”) –TS-HCT-M062
64-86mm (2.500-3.375”) –TS-HCT-M075
70-92mm (2.750-3.625”) –TS-HCT-M081
95-117.5mm (3.750-4.625”) –TS-HCT-M100
Features
Dual Spring Action through convoluted Spring Action Band
Dual Bead Inner shell for concentrated sealing force
Flanged Edges for protection of soft hose compounds
Reduced Stress & Distress to hose, increasing service life
Recommended Installation Tips
Tool(s) Required: Flat Head Screwdriver or 5/16” Socket
Installation Torque: 5.6Nm / 50in.lbs
| Product Name | Turbosmart TS Constant Tension Clamps 2.500-3.375" |
|---|---|
| Brands | Turbosmart |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the purpose of the Turbosmart TS Constant Tension Clamp?
The Turbosmart TS Constant Tension Clamp is designed to maintain consistent force and load on hoses during thermal cycling. This helps prevent deformation and 'Compression Set' in silicone and rubber hoses, ensuring reliable connections in high-temperature environments.
What size range does the TS-HCT-M075 clamp accommodate?
The TS-HCT-M075 clamp is suitable for hoses with a diameter range of 64mm to 86mm (2.500-3.375 inches), making it ideal for various forced induction applications.
What tools are required for the installation of the TS-HCT-M075 clamp?
To install the TS-HCT-M075 clamp, you will need a flat head screwdriver or a 5/16” socket. Ensure to follow the recommended installation torque of 5.6Nm (50in.lbs) for optimal performance.
How does the dual spring action feature benefit the clamp's performance?
The dual spring action of the TS-HCT-M075 clamp allows it to adapt to the expansion and contraction of hoses during heat cycles, reducing stress and distress on the hose material. This feature increases the service life of the hoses and enhances the reliability of the connection.
Can the TS-HCT-M075 clamp be used with any type of hose?
While the TS-HCT-M075 clamp is designed for use with silicone and rubber hoses, it is essential to ensure that the hose is compatible with the clamp's size range and that the installation is done correctly to achieve optimal sealing and performance.
