Toyota JZ Dry Sump Kit
The Ross Performance Parts Toyota 1JZ / 2JZ / 2JZ-VVTi Dry Sump Kit is a comprehensive oiling solution for your high performance JZ engine. Designed to fit and work together without modification to any other engine component.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

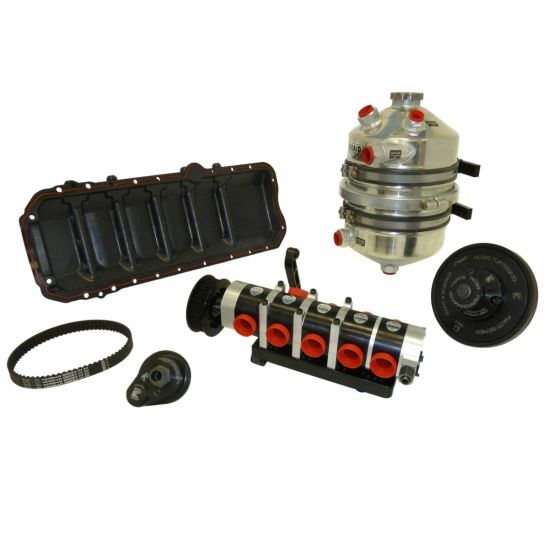

Toyota JZ External Oil Pump Dry Sump System 5 Stage
Kit includes the following:
- Toyota 1JZ / 2JZ Race Series Harmonic Damper (806501)
- Toyota 1JZ / 2JZ Billet Dry Sump (806001-11)
- Aviaid 5 Stage External Oil Pump LH Mounting with 1 x 1.75†Pressure and 4 x 1.75†Suction (9950511-4545)
- Aviaid Dry Sump Tank 3 Gallon Capacity (Aviaid Oil Tank 3GAL)
- Toyota 1JZ / 2JZ Oil Pump Left Hand Mounting Bracket (806001-18)
- Toyota 1JZ / 2JZ Billet Lower Bellhousing Cover (806001-12)
- Toyota 1JZ OR 2JZ Billet Cam Covers (Pair) (806001-14 OR 806002-14 OR 806002-14-SP1)
- Toyota 1JZ / 2JZ Oil Return Adaptor (Dry Sump Conversion) (806001-25)
- Toyota 1JZ / 2JZ Billet Oil Pump Blanking Plate (806001-26)
- Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD)
- 38T HTD Oil Pump Pulley with Pulley Shields (991038)
- 8mm HTD Oil Pump Drive Belt 624mm x 20mm (993624-8M-20)
- Toyota 1JZ or 2JZ Tensioner Bracket (Timing Belt) (806001-48 or 806002-48)
Note, to utilise this kit the air conditioning must be removed.
All Ross Performance Parts Dry Sump Kits can be customised/altered to suit your specific engine requirements.
Got any questions or feedback on our Toyota 1JZ / 2JZ / 2JZ-VVTi Dry Sump Kit (5 Stage), Oil Pump Kits, Oiling Systems or general tech questions?
Please call +61 7 5645 1333. You can also send us an email: [email protected]
| Product Name | Toyota JZ Dry Sump Kit |
|---|---|
| Brands | Ross Performance |
| Engine | 1JZ, 1JZ-GTE, 2JZ, 2JZ-GTE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
When should I upgrade the oil pump or gears?
High rpm, high boost or track use normally justify upgrading the pump or billet gears, especially on engines known for oil pump weakness.
Do I need an oil restrictor or head drain?
Some DOHC turbo engines benefit from a restrictor and head drain to control oil pooling at high rpm. Whether you need one depends on your build.
What modifications are required to install the Toyota JZ Dry Sump Kit?
To install the Toyota JZ Dry Sump Kit, you must remove the air conditioning system. The kit is designed to fit without modifications to other engine components, but ensure that your engine bay has adequate space for the dry sump tank and pump.
What is the purpose of the 5-stage external oil pump in this kit?
The 5-stage external oil pump provides improved oil management for high-performance applications. It allows for better control of oil pressure and volume, reducing the risk of oil starvation during high RPM and aggressive driving conditions.
Is the dry sump tank included in the kit sufficient for my JZ engine?
Yes, the kit includes a 3-gallon dry sump tank, which is generally adequate for 1JZ and 2JZ applications. However, ensure that the tank is properly mounted and that the oil return lines are correctly routed to prevent aeration and maintain optimal oil flow.
Do I need to balance my rotating assembly after installing this dry sump system?
Yes, it is recommended to balance your rotating assembly after installing the dry sump system. This ensures that the engine operates smoothly and efficiently, especially under high-performance conditions where vibration can lead to premature wear or failure.
Can I customise the components of the dry sump kit for my specific needs?
Yes, the Ross Performance Dry Sump Kit can be customised or altered to suit your specific engine requirements. Contact Spool Imports for assistance with modifications to ensure compatibility with your setup.
