Toyota 3SGTE Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

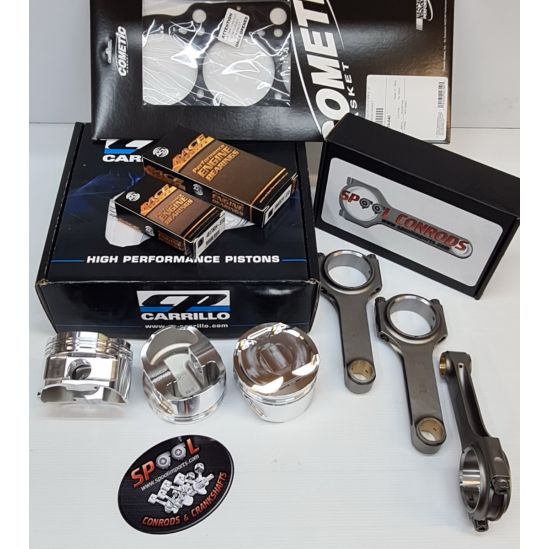

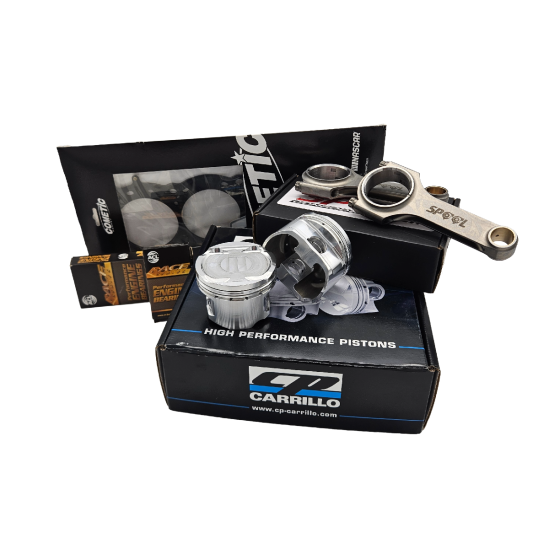

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- CP Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Pistons are available in:
- Compression Ratio: 9.0:1
- Bore Sizes: 86.5mm and 87mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Toyota 3SGTE Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 3SGTE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the CP forged pistons in the 3SGTE rebuild kit?
For the CP forged pistons in this rebuild kit, the recommended bore clearance typically ranges from 0.0015" to 0.0025". However, it is crucial to verify these clearances based on your specific engine build and intended use.
What is the correct torque specification for the ARP2000 bolts on the Spool H Beam conrods?
The ARP2000 bolts included with the Spool H Beam conrods should be torqued to approximately 55 ft-lb using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate specifications.
Do the ACL Race Series bearings require any specific installation procedures?
Yes, when installing the ACL Race Series bearings, ensure that the bearing surfaces are clean and properly lubricated with assembly lube. Additionally, confirm that the main caps and girdles are line bored after installation for optimal alignment and fit.
Can I use a different compression ratio with the CP pistons in this kit?
The CP pistons in this kit are available with a standard compression ratio of 9.0:1. If you require a different compression ratio, you would need to consult with a professional engine builder to determine the best piston option for your specific performance goals.
What type of oil should I use during the break-in period for this engine kit?
It is recommended to use Joe Gibbs Break in Oil for all new engines built with this kit. This oil is designed to provide optimal protection during the critical break-in period.
