Performance Springs Toyota 3S-GTE ST185 Single Valve Springs – PS 25109
Performance Springs Toyota 3S-GTE Gen 3 ST205 Single Valve Springs – PS 25922
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

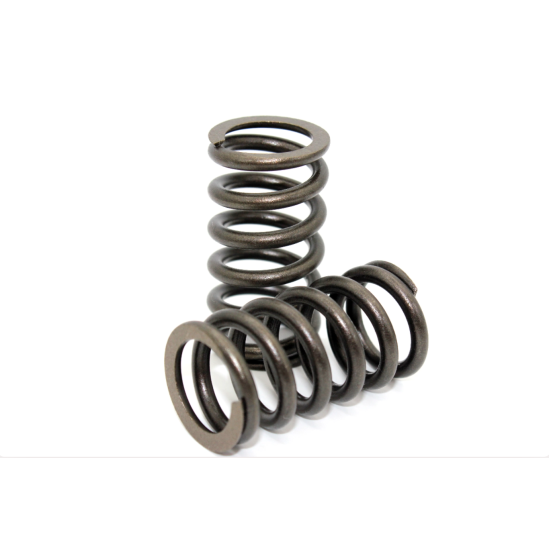

Performance Springs PS 25922 Single Valve Springs are designed specifically for the Toyota 3S-GTE Gen 3 (ST205) engine.
These performance valve springs are designed to provide improved valve train control for performance and modified 3S-GTE applications.
The PS 25922 has a maximum specified valve lift of 0.480", with an installed height of 35.8 mm. It provides 70 lb of seat pressure and 175 lb of open pressure at 10 mm lift.
The spring features a 27.1 mm outside diameter, 19.4 mm inside diameter and 22.3 mm coil bind. (Performance Valve Springs)
A complete Toyota 3S-GTE Gen 3 ST205 engine requires 16 × PS 25922 valve springs.
Spring Specifications
- Engine Model: 3S-GTE Gen 3 (ST205)
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.480"
- Installed Height: 35.8 mm
- Seat Pressure: 70 lb
- Open Pressure: 175 lb @ 10 mm
- Outside Diameter: 27.1 mm
- Inside Diameter: 19.4 mm
- Coil Bind: 22.3 mm
- Quantity Required: 16 springs
Application
- Toyota 3S-GTE Gen 3
- Toyota ST205
- Toyota Celica GT-Four ST205
- Toyota 3S-GTE Gen 3 performance applications
- Modified Toyota 3S-GTE ST205 engines
What's Included
- 16 × Performance Springs PS 25922 Single Valve Springs
Installation Information
Always verify:
- Installed height
- Seat and open pressure
- Maximum valve lift
- Coil bind clearance
- Retainer compatibility
- Valve stem compatibility
- Complete valve train geometry
against the specific engine and cylinder-head configuration before installation.
Performance Valve Springs states that the person using or installing these parts is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also specifies an approximate ±8% tolerance on pressure specifications.
| Product Name | Performance Springs Toyota 3S-GTE Gen 3 ST205 Single Valve Springs – PS 25922 |
|---|---|
| Brands | Performance Springs |
| Engine | 3SGTE |
| Make | Toyota |
