Performance Springs Toyota 1GR-FE & 2GR-FE 24V Single Valve Springs – PS 10084
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

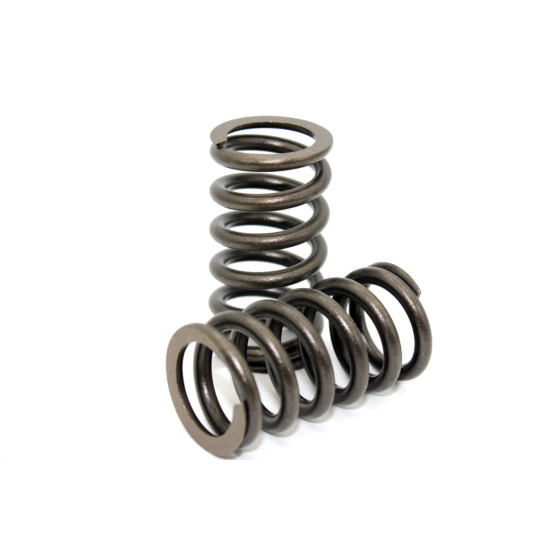

Performance Springs PS 10084 Single Valve Springs are designed specifically for Toyota 1GR-FE and 2GR-FE 24V engines.
These performance valve springs are designed to provide improved valve train control for performance Toyota V6 applications, with a maximum specified valve lift of 0.435".
The PS 10084 installs at 1.42" installed height, providing 55 lb of seated pressure and 130 lb of open pressure at 10 mm lift.
The spring has a 25.6 mm outside diameter, 18.6 mm inside diameter and 21.7 mm coil bind height. Additional supplier pressure specifications are 70 lb at 33.5 mm and 135 lb at 24.6 mm.
A complete Toyota 1GR-FE or 2GR-FE 24V engine requires 24 × PS 10084 valve springs.
Spring Specifications
- Brand: Performance Springs
- Supplier: Performance Valve Springs
- Part Number: PS 10084
- Engine Make: Toyota
- Engine Models: 1GR-FE & 2GR-FE
- Configuration: 24V
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.435"
- Installed Height: 1.42"
- Seated Pressure: 55 lb
- Open Pressure: 130 lb @ 10 mm lift
- Pressure @ 33.5 mm: 70 lb
- Pressure @ 24.6 mm: 135 lb
- Outside Diameter: 25.6 mm
- Inside Diameter: 18.6 mm
- Coil Bind: 21.7 mm
- Quantity Required: 24 springs per engine
Applications
- Toyota 1GR-FE 24V
- Toyota 2GR-FE 24V
What's Included
- 24 × Performance Springs PS 10084 Single Valve Springs
The supplier states that a Toyota 1GR-FE / 2GR-FE 24V requires 24 PS 10084 springs. When ordering through the supplier, the correct quantity is automatically added to the cart.
Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.
Performance Valve Springs states that it is the installer's responsibility to check and recheck all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.
| Product Name | Performance Springs Toyota 1GR-FE & 2GR-FE 24V Single Valve Springs – PS 10084 |
|---|---|
| Brands | Performance Springs |
| Engine | 1GR-FE |
| Make | Toyota |
