Performance Springs Toyota 1GR-FE & 2GR-FE 24V Single Valve Spring & Titanium Retainer Kit – PST 25922965K
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

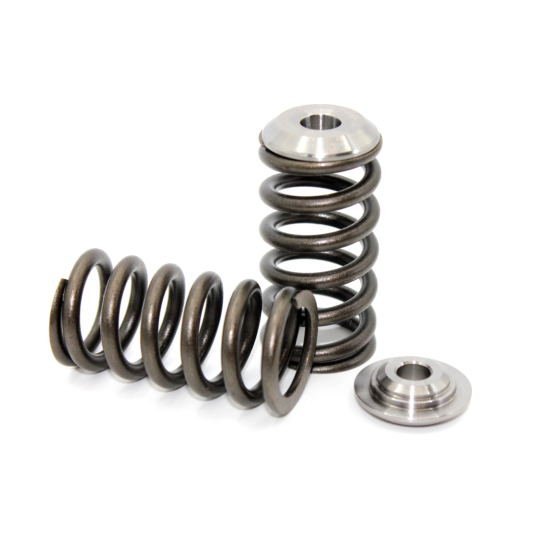

Performance Springs PST 25922965K is a performance single valve spring and titanium retainer kit designed for Toyota 1GR-FE and 2GR-FE 24V engines.
The kit is designed to provide improved valve train control for performance Toyota V6 applications, with 75 lb of seat pressure and 180 lb of pressure at 10 mm valve lift.
The springs install at 35.4 mm installed height and are suitable for a maximum valve lift of 11 mm.
This complete kit includes 24 PVS single valve springs and 24 titanium valve spring retainers, providing the components required for a complete 24-valve engine.
Spring Specifications
- Brand: Performance Springs
- Supplier: Performance Valve Springs
- Part Number: PST 25922965K
- Engine Make: Toyota
- Engine Models: 1GR-FE & 2GR-FE
- Configuration: 24V
- Spring Type: Single Valve Spring
- Installed Height: 35.4 mm
- Seat Pressure: 75 lb
- Pressure @ 10 mm Lift: 180 lb
- Maximum Valve Lift: 11 mm
- Valve Springs: 24
- Titanium Retainers: 24
Applications
- Toyota 1GR-FE 24V
- Toyota 2GR-FE 24V
Kit Includes
- 24 × PVS Single Valve Springs
- 24 × Titanium Valve Spring Retainers
Titanium Retainer Note: Performance Valve Springs manufactures its titanium retainers in-house. The supplier currently warns that titanium retainer availability can be subject to delays and that the majority of its titanium retainers do not fit the OEM spring. Retainer compatibility should therefore be confirmed before installation.
Important Installation Information:
Always verify installed height, valve lift, spring pressure, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.
Performance Valve Springs states that it is the installer's responsibility to check and recheck all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.
| Product Name | Performance Springs Toyota 1GR-FE & 2GR-FE 24V Single Valve Spring & Titanium Retainer Kit – PST 25922965K |
|---|---|
| Brands | Performance Springs |
| Engine | 1GR-FE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Which engines does the PST 25922965K kit suit?
The kit is designed for Toyota 1GR-FE and 2GR-FE 24-valve V6 engines. Confirm all dimensions against the specific cylinder heads and valvetrain before installation.
What is included in this valve spring and retainer kit?
It includes 24 single valve springs and 24 titanium valve spring retainers, enough for one complete 24-valve engine.
What are the spring pressure and lift specifications?
The springs are specified at a 35.4mm installed height with 75lb seat pressure and 180lb at 10mm lift. Maximum listed valve lift is 11mm.
Will the titanium retainers fit the original Toyota springs?
This kit's retainers are intended to be used with the supplied springs. Do not assume they fit original springs; retainer, lock and spring compatibility must be checked before assembly.
What must be measured during installation?
Verify installed height, actual pressure, valve lift, coil-bind clearance, retainer and lock compatibility, seal clearance and all other valvetrain clearances for the specific engine.
