Arias Toyota 4.0L 1GR-FE, Bore 3.701, CH 1.280, Stroke 3.740, Rod 6.299, CR 10:1, Head 48.5cc (A3720501)
Standard bore is a Made to Order piston by Arias so will take 5-8 weeks
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Arias Toyota 1GR-FE Piston
All Arias Pistons are now Manufactured by CP-Carrillo in their ultra-modern facility in California USA. ARIAS pistons have over forty-three years of forged piston innovation that has set the standard for piston performance. Founded in the workshop and on the racetrack by Nick Arias Jr. in 1969, ARIAS PISTONS blends its unique experience, state-of-the-art equipment, engineering excellence and dedicated team to produce pistons that have forged a reputation for power!
- Hi-tensile forged, not cast, billet material 2618
- CNC machined working surfaces
- Optimized crowns for efficient combustion
- Diamond-turned ellipsoidal skirt profile
- Performance street & track pistons feature lightweight, high strength construction
- Heavy duty pistons feature durable design for turbos, blowers & nitrous
| Make | Toyota / Lexus |
| Engine | 1GR-FE |
| Bore Diameter | 94mm |
| Bore Oversize | Standard Bore |
| Stroke | 95mm (Standard Stroke) |
| Compression Ratio | 10.0:1 |
| Pin Size | 0.866" / 22mm |
| Included Ring Set | CPN-3701 |
| Included Pin Locks | 866x063 SWL |
| Included Pin | 866-2250-18CP1C |
| Face Type | Dish |
| Dish cc | 17.15 cc |
| Compression Height | 1.280" / 32.5mm |
| Brand | Arias Pistons |
| Skirt Type | Full Round |
| Piston Material | 2618 |
| Wrist Pin Wall Thickness | 0.180" |
| Wrist Pin Dimensions | .866" x 2.250" x .180" |
| Pin Material | 5100 Chrome Moly Steel |
| Product Name | Arias Toyota 4.0L 1GR-FE, Bore 3.701, CH 1.280, Stroke 3.740, Rod 6.299, CR 10:1, Head 48.5cc (A3720501) |
|---|---|
| Brands | Arias |
| Engine | 1GR-FE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. For Australia, you need to select from ALL dropdowns (Country, State, Suburb, and Postcode) for the quote system to work. (There may be a small delay as it searches.) For international orders, you only need to select the Country to get a quote, but more details are required at checkout to complete the order.
If you have issues calculating freight, please get in touch. The most common reason for issues is that the postcode does not match the suburb, or the suburb is spelled differently from what the carriers have.
Disclaimer:

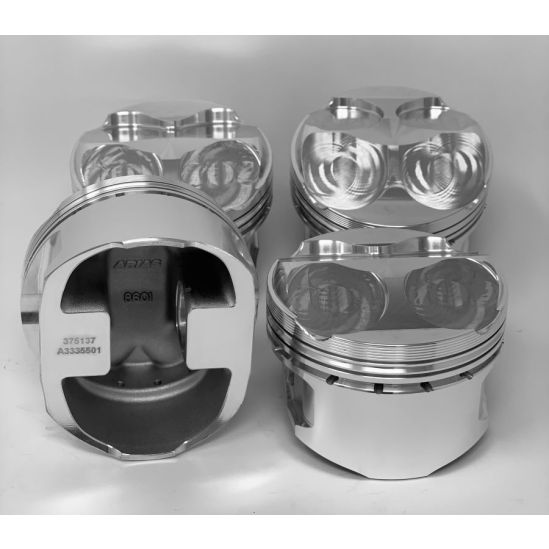

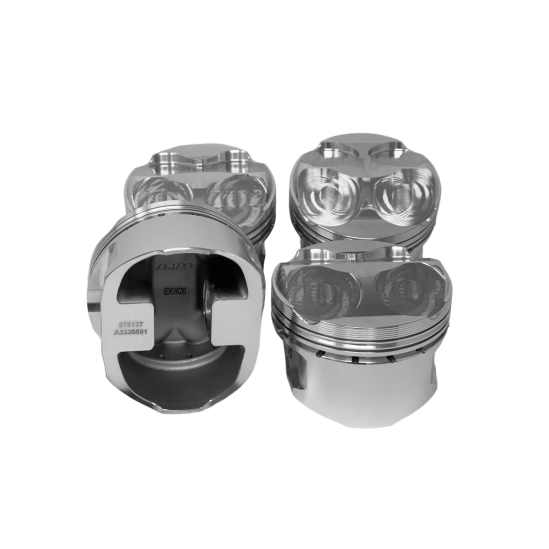

Product images are for description purposes only. Actual product may vary.
