Spool Suzuki G13B Conrods
Spool Suzuki G16A / G16B Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.

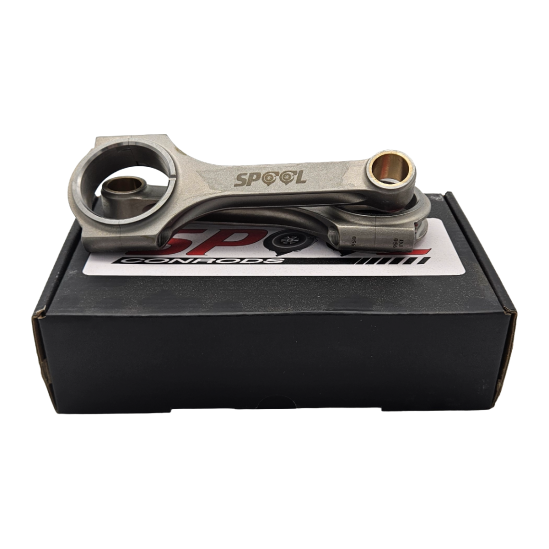

Product Overview: Spool Suzuki G16A / G16B Conrods
Enhance your engine's performance with our premium Spool Suzuki G16A / G16B Conrods, designed for durability and precision. Crafted from high tensile 4340 forged steel, these conrods are engineered to withstand extreme conditions, making them ideal for high-performance applications. Our conrods are trusted by enthusiasts achieving over 1000 RWHP. Explore our project cars to see them in action.
Key Features:
- High tensile 4340 forged steel construction
- 2 Piece forging for enhanced strength
- Hardness rated at HRC36-42
- Dowelled caps ensure precision alignment
- Thoroughly X-RAY & Sonic tested
- Quenching and heat treated for durability
- Shot peened for improved fatigue strength
- 100% Magnafluxed to ensure integrity
- Weight matched sets with a tolerance of ±1 gram
- Vacuum degassed to eliminate impurities
Please note: No bearings are included.
| Product Name | Spool Suzuki G16A / G16B Conrods |
|---|---|
| Brands | Spool |
| Engine | G16A/G16B |
| Make | Suzuki |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use 5/16" ARP2000 conrod bolts. 5/16" ARP2000 bolts are generally torqued to around 30 ft-lb when using ARP Ultra-Torque lube. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What machining is required for the Spool Suzuki G16A/G16B conrods?
The Spool Suzuki G16A/G16B conrods may require big-end or small-end honing to achieve the correct fitment due to variations in journal and pin sizes. It's essential to check clearances with your specific components for optimal performance.
What is the weight tolerance for the Spool G16A/G16B conrods?
The Spool G16A/G16B conrods are weight matched sets with a tolerance of ±1 gram. This ensures consistency across the conrods, which is crucial for maintaining balance in high-performance applications.
Are bearings included with the Spool Suzuki G16A/G16B conrods?
No, the Spool Suzuki G16A/G16B conrods do not include bearings. You will need to source compatible bearings separately to complete your assembly.
What materials are used in the construction of the Spool G16A/G16B conrods?
The Spool G16A/G16B conrods are made from high tensile 4340 forged steel, which provides excellent strength and durability for high-performance applications.
How are the Spool Suzuki G16A/G16B conrods tested for quality?
The Spool Suzuki G16A/G16B conrods undergo thorough X-RAY and sonic testing, are 100% Magnafluxed to ensure integrity, and are shot peened to improve fatigue strength, ensuring they meet high-performance standards.
