Spool Suzuki G16A / G16B Conrods
Spool Suzuki G13B Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.

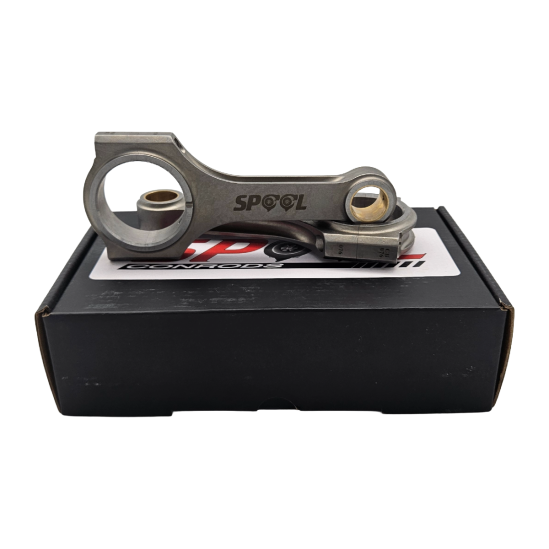

Product Overview: Spool Suzuki G13B Conrods
Enhance your engine's performance with the Spool Suzuki G13B Conrods, engineered for high durability and precision. These conrods are crafted from high tensile 4340 forged steel, ensuring exceptional strength and reliability for your vehicle. Perfect for high-performance applications, they are designed to withstand extreme conditions and deliver outstanding results.
Key Features:
- Constructed from high tensile 4340 forged steel for superior strength
- 2 Piece forging for enhanced durability
- Hardness rated at HRC36-42
- Dowelled caps for precision alignment
- Thoroughly X-RAY & Sonic tested
- Quenching and heat treated for optimal performance
- Shot peened for increased fatigue strength
- 100% Magnafluxed to ensure integrity
- Weight matched sets with a tolerance of +/- 1 gram
- Vacuum degassed to remove impurities
Please note: No bearings are included.
Join our satisfied customers achieving over 1000 RWHP with Spool Conrods. Explore our project cars here.
| Product Name | Spool Suzuki G13B Conrods |
|---|---|
| Brands | Spool |
| Engine | G13B |
| Make | Suzuki |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use 5/16" ARP2000 conrod bolts. 5/16" ARP2000 bolts are generally torqued to around 30 ft-lb when using ARP Ultra-Torque lube. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the material used for the Spool Suzuki G13B Conrods?
The Spool Suzuki G13B Conrods are constructed from high tensile 4340 forged steel, providing exceptional strength and reliability for high-performance applications.
What are the key features of the Spool Suzuki G13B Conrods?
Key features include a two-piece forging for enhanced durability, dowelled caps for precision alignment, thorough X-ray and sonic testing, quenching and heat treatment, shot peening for increased fatigue strength, and weight matched sets with a tolerance of +/- 1 gram.
Are bearings included with the Spool Suzuki G13B Conrods?
No, please note that the Spool Suzuki G13B Conrods do not come with bearings included.
What kind of testing do the Spool Suzuki G13B Conrods undergo?
These conrods are thoroughly X-ray and sonic tested, 100% Magnafluxed to ensure integrity, and vacuum degassed to remove impurities, ensuring high quality and performance.
What is the typical application for the Spool Suzuki G13B Conrods?
The Spool Suzuki G13B Conrods are designed for high-performance applications, suitable for builds aiming for significant power outputs, with users achieving over 1000 RWHP in some cases.
