Spool Suzuki G13B Conrod and CP Custom Piston Package
Spool Suzuki G16A / G16B Conrod and Custom CP Piston Package
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

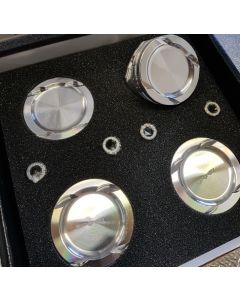

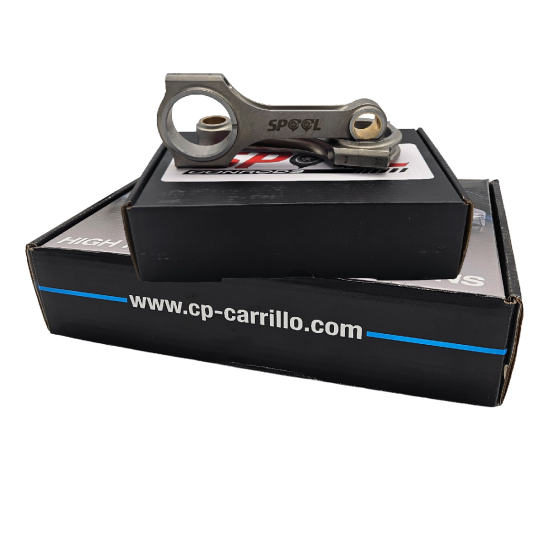

Spool G16A / G16B Forged Connecting Rods and CP Forged Pistons
These custom pistons are available in any bore size and any compression ratio. Turn around time for pistons is generally 16-20 weeks.
Pistons come with rings, gudgeon pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Spool Suzuki G16A / G16B Conrod and Custom CP Piston Package |
|---|---|
| Brands | Spool |
| Engine | G16A/G16B |
| Make | Suzuki |
