Performance Springs Suzuki G16A 4V Single Valve Springs – PS 350693
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

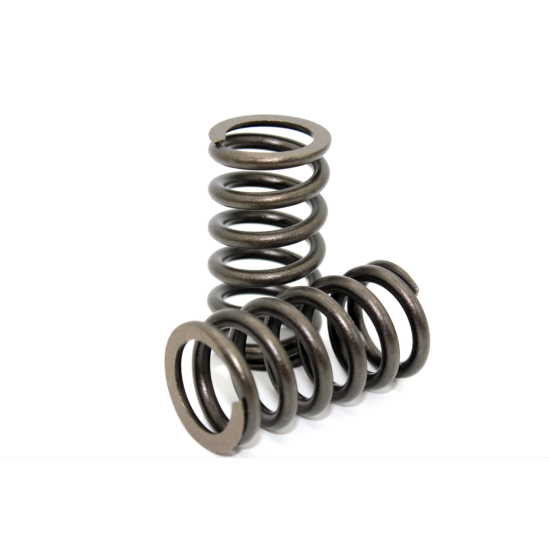

Performance Springs PS 350693 Single Valve Springs are designed specifically for the Suzuki G16A 4V engine.
These performance valve springs are designed to provide improved valve train control for performance and modified Suzuki G16A 4V applications while retaining the use of standard/OEM valve spring retainers.
The PS 350693 has a maximum specified valve lift of 0.460" and installs at 1.530" installed height.
The spring provides 85 lb of pressure at 39.6 mm and 180 lb at 27.4 mm, with a 23.4 mm coil bind height.
A complete Suzuki G16A 4V engine requires 16 × PS 350693 valve springs.
Spring Specifications
- Engine Model: G16A
- Configuration: 4 Valve
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.460"
- Retainers: Standard / OEM
- Installed Height: 1.530"
- Pressure @ 39.6 mm: 85 lb
- Pressure @ 27.4 mm: 180 lb
- Outside Diameter: 29.8 mm
- Inside Diameter: 22.1 mm
- Coil Bind: 23.4 mm
- Quantity Required: 16 springs
Application
- Suzuki G16A 4V
- Suzuki G16A performance applications
- Modified Suzuki G16A 4V engines
- Performance G16A valve train applications
What's Included
- 16 × Performance Springs PS 350693 Single Valve Springs
The supplier specifies that a Suzuki G16A 4V requires 16 × PS 350693 springs, with the correct quantity supplied when ordering.
Retainers are not included.
The PS 350693 is specified for use with standard/OEM retainers.
Important Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and complete valve train geometry against the specific engine and cylinder-head configuration before installation.
Performance Valve Springs states that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.
If there is any concern regarding the specifications or application, the supplier recommends contacting them before ordering.
| Product Name | Performance Springs Suzuki G16A 4V Single Valve Springs – PS 350693 |
|---|---|
| Brands | Performance Springs |
| Engine | G16A/G16B |
| Make | Suzuki |
