Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit

As there are so many part numbers we order these in on demand from CP. They will take UP to 2 weeks but generally less. If CP has them on back order we will email you and let you know otherwise we ship when they arrive.
AUD$3,859.09
SKU
SPL-LS-3-622-STK-KIT
+ -
Add to Wish List Share

Copy Link

AfterPay, Zip, Klana

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Protect you newly assembled engine during start-up
Federal Mogul Sealed Power Engine Assemble Lube 4oz
Federal Mogul Sealed Power Engine Assemble Lube 4oz
Special Price AUD$13.64 Regular Price AUD$18.18
Out of stock

Spool Holden VE / GM LS 5.7 and 6.0 Litre V8 OEM 3.622" Stroke Crank Kit

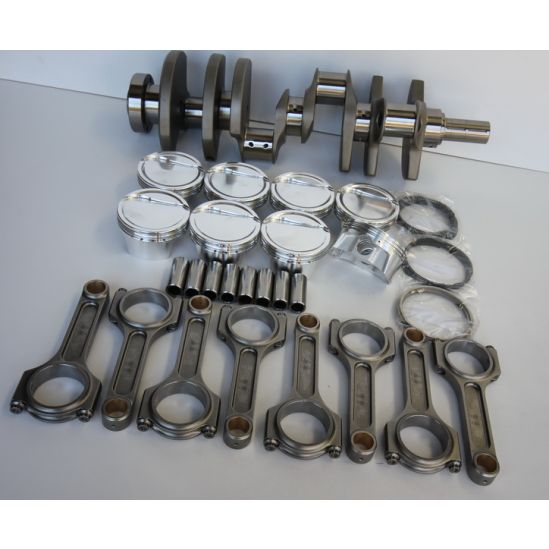

This kit includes the following quality parts:

  • Spool 3.622" Stroker Crankshaft - Crank Does Not Come With Reluctor fitted
  • Spool 6.125" H Beam Connecting Rods with ARP2000 7/16 bolts
  • CP Bullet LS Pistons- SELECT FROM LIST BELOW
  • Includes Pins, Rings and Locks

CP Bullet Series Pistons

Try our new LS Piston Finder to help select the right piston. Click here

Chevrolet LS 3.622" Stroke (15°Heads) with 6.125" Connecting Rods

CP part numberPiston specification (dimensions in inches)Source application details
BLS1001-007Part#: / Bore: 3.905 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Ref C/R: 9.3:1 with 70cc headsChevy LS1 Flat top -4.1cc All std 15 deg/ L92 3.905 bore, 3.622 stroke, 6.125 rod 9.3 to 1 Comp with 70cc head
BLS1011-005Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.2:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.005 bore, 3.622 stroke, 6.125 rod 10.2 to 1 Comp with 68cc head
BLS1011-030Part#: / Bore: 4.030 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.4:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 3.622 stroke, 6.125 rod 10.4 to 1 Comp with 68cc head
BLS1012-005Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.2:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.005 bore, 3.622 stroke, 6.125 rod 10.3 to 1 Comp with 68cc head
BLS1012-010Part#: / Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.2:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.010 bore, 3.622 stroke, 6.125 rod 10.3 to 1 Comp with 68cc head
BLS1012-125Part#: / Bore: 4.125 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.6:1Chevy All LS 15 degree/L92 -2.7cc Flat Top 4.125 bore 1.300 CH 10.6:1 CR with 68cc head
BLS1112-007Part#: / Bore: 3.905 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / C/R: 9.6:1Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.905 bore, 3.622 stroke, 6.125 rod 9.6 to 1 Comp with 70cc head
BLS1114-005Part#: / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.2:1Chevy LS3 Dish -14.5cc All std 15 deg/ L92 4.070 bore, 3.622 stroke, 6.125 rod 9.1 to 1 Comp with 70cc head
BLS1114-010Part#: / Bore: 4.075 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.2:1Chevy LS3 Dish -14.5cc All std 15 deg/ L92 4.075 bore, 3.622 stroke, 6.125 rod 9.2 to 1 Comp with 70cc head
BLS1114-STDPart#: / Bore: 4.065 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.0:1Chevy LS3 Dish -14.5cc All std 15 deg/ L92 4.065 bore, 3.622 stroke, 6.125 rod 9.0 to 1 Comp with 70cc head
BLS1116-005Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.5:1Chevy LS2 Dish -5.6cc All std 15 deg/ L92 4.005 bore, 3.622 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1118-030Part#: / Bore: 4.030 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.0:1Chevy LS2 Dish -13cc All std 15 deg/ L92 4.030 bore, 3.622 stroke, 6.125 rod 9.1 to 1 Comp with 68cc head
BLS1118-040Part#: / Bore: 4.040 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.0:1Chevy LS2 Dish -13cc All std 15 deg/ L92 4.040 bore, 3.622 stroke, 6.125 rod 9.2 to 1 Comp with 68cc head
BLS1121-005Part#: / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / C/R: 10.6:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.070 bore, 3.622 stroke, 6.125 rod 10.6 to 1 Comp with 66.5cc head
BLS1121-STDPart#: / Bore: 4.065 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / C/R: 10.5:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.065 bore, 3.622 stroke, 6.125 rod 10.5 to 1 Comp with 66.5cc head
BLS1122-015Part#: / Bore: 4.080 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / C/R: 10.6:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.080 bore, 3.622 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1127-015Part#: / Bore: 4.080 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.295 / C/R: 10.1:1Chevy LS3 Flat top -3.5cc All std 15 deg/ L92 4.080 bore, 3.622 stroke, 6.125 rod 10.0 to 1 Comp with 70cc head
BLS1135-030Part#: / Bore: 4.030 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.2:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 3.622 stroke, 6.125 rod 10.2 to 1 Comp with 68cc head
BLS1135-065Part#: / Bore: 4.065 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.3:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.065 bore, 3.622 stroke, 6.125 rod 10.4 to 1 Comp with 68cc head
BLS1135-070Part#: / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.3:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.070 bore, 3.622 stroke, 6.125 rod 10.4 to 1 Comp with 68cc head
BLS1135-075Part#: / Bore: 4.075 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.4:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.075 bore, 3.622 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1136-005Part#: / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.314 / C/R: 10.6:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.070 bore, 3.622 stroke, 6.125 rod 10.6 to 1 Comp with 68cc head
BLS1138-005Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Ref C/R: 11.7:1 with 68cc headsChevy LS2 Dome +10cc All std 15 deg/ L92 4.005 bore, 3.622 stroke, 6.125 rod 11.7 to 1 Comp with 68cc head
BLS1140-005Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.0:1Chevy LS2 Dish -13.3cc All std 15 deg/ L92 4.005 bore, 3.622 stroke, 6.125 rod 9.1 to 1 Comp with 68cc head
BLS1140-125Part#: / Bore: 4.125 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 9.5:1Chevy -13.3cc Dish LS All 15 degree/L92 4.125 bore 3.622 stroke 6.125 rod 1.300 CH 9.5:1 CR with 68cc head
BLS1150-005AFR/Brodix 12-degree heads only / Part#: / Bore: 4.005 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.1:1Chevy LS2 365ci AFR LS3 12 degree 4.005 bore 1.300 CH -3.8cc Flat Top
BLS1150-030AFR/Brodix 12-degree heads only / Part#: / Bore: 4.030 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.1:1Chevy LS2 Flat Top -3.8cc AFR LS3 12 degree 4.030 bore 1.300 CH
BLS1152-005AFR/Brodix 12-degree heads only / Part#: / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / C/R: 10.3:1Chevy LS3 377ci AFR LS3 12 degree 4.070 bore 1.300 CH -3.8cc Flat Top
BLS1001-017Bore: 3.915 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS1 Flat top -4.1cc All std 15 deg/ L92 3.915 bore, 3.622 stroke, 6.125 rod 9.4 to 1 Comp with 70cc head
BLS1011-010Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.010 bore, 3.622 stroke, 6.125 rod 10.2 to 1 Comp with 68cc head
BLS1011-020Bore: 4.020 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.020 bore, 3.622 stroke, 6.125 rod 10.2 to 1 Comp with 68cc head
BLS1012-020Bore: 4.020 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Flat Top -2.7cc All std 15 deg/L92 4.020 bore, 3.622 stroke, 6.125 rod 10.3 to 1 Comp with 68cc head
BLS1016-007Bore: 3.905 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS1, std 15 degree / L92, 3.905 bore, 1.300 CH, 9.0:1, 68 head CC, -9.7dish CC""
BLS1112-017Bore: 3.915 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.915 bore, 3.622 stroke, 6.125 rod with 70cc head
BLS1116-010Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Dish -5.6cc All std 15 deg/ L92 4.010 bore, 3.622 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1138-010Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Pin: .927 x 2.250Chevy LS2 Dome +10cc All std 15 deg/ L92 4.010 bore, 3.622 stroke, 6.125 rod 11.7 to 1 Comp with 68cc head
BLS1138-020Bore: 4.020 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Pin: .927 x 2.250Chevy LS 6.0L Head:ALL 15 degree / L92 Bore:4.020, 1.305 CH, +10cc Dome, 11.8:1 CR, 68 head CC""
BLS1138-030Bore: 4.030 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Pin: .927 x 2.250Chevy LS 6.0 L Head:All 15 degree / L92 Bore:4.030, 1.305"" CH, +10cc Dome, 11.8:1 CR, 68 head CC""
BLS1140-010Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Dish -13.3cc All std 15 deg/ L92 4.010 bore, 3.622 stroke, 6.125 rod 9.1 to 1 Comp with 68cc head
BLS1140-020Bore: 4.020 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250Chevy LS2 Dish -13.3cc All std 15 deg/ L92 4.020 bore, 3.622 stroke, 6.125 rod 9.1 to 1 Comp with 68cc head
BLS1156-STDBore: 4.000 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.304 / Pin: .927 x 2.250Chevy 6.0L All LS 15 degree/L92 Bore 4.000 CH 1.304 Stroke 3.622 Rod 6.125 Flat Top Head 68cc
BLSR1121-005(BLSR Race) / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.305 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS All 15 degree/L92 heads, 4.070 bore, 3.622 stroke, 6.125 rods, 1.305 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1140-010(BLSR Race) / Bore: 4.010 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS 365ci All 15 degree/L92 Bore 4.010 CH 1.300 Stroke 3.622 Rod 6.125 CR 9 Dish Head 68cc
BLSR1114-005(BLSR Race) / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy All LS 15 degree/L92 heads, 4.070 bore, 3.622 stroke, 6.125 rod, 1.300 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1135-070(BLSR Race) / Bore: 4.070 / Stroke: 3.622 / Rod: 6.125 / Comp Height: 1.300 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS All 15 degree/L92 heads, 4.070 bore, 3.622 stroke, 6.125 rod, 1.300 CH, 1.2mm, 1.2mm, 3.0mm rings

Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact [email protected]

CP Bullet Pistons Feature:

  • Pistons manufactured from 2618 alloy for strength and durability
  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made

Note: Clearancing of the cylinder block is sometimes required.

Piston selection: Match the measured block bore, stroke, 6.125-inch rod and actual cylinder-head geometry. Large-bore options require a suitable block and matching head-gasket bore. AFR/Brodix 12-degree options, where listed, require those specific heads. BLSR Race options use 1.2/1.2/3.0mm rings and carry the displayed upgrade charge; use the matching supplied ring set. Compression ratios are reference figures and depend on the complete engine combination.

More Information
Product Name Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit
Brands Spool
Engine LS
Make Chevrolet, GM, Holden, LS Chev

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

If you are outside of Australia, you are responsible for any duty or taxes charged by your government."

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

What is included in a typical Spool engine kit?

Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.

Do I still need machining with a full engine kit?

Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.

What machining is required for the Spool Holden VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit?

The crankshaft may require balancing with the full rotating assembly to ensure optimal performance. Additionally, the conrods typically need big-end or small-end honing due to factory journal and pin size variations. Always check clearances and tolerances as specified by your engine builder.

What are the torque specifications for the ARP2000 bolts included in this kit?

For the 7/16" ARP2000 bolts included with the Spool conrods, the torque specification is approximately 75 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP’s latest instructions for the most accurate specifications.

Can I use any piston with this crank kit, or are there specific requirements?

You can select from a range of CP Bullet LS pistons that are compatible with this crank kit. Ensure that the pistons you choose are suitable for the desired compression ratio and application. Proper bore clearance and ring gaps must also be set by the engine builder.

Is clearancing of the cylinder block necessary when using this crank kit?

Yes, clearancing of the cylinder block is sometimes required when using the Spool Holden VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit. This ensures that the rotating assembly has adequate clearance to operate without interference.

What is the stroke length of the crankshaft in this kit?

The crankshaft in the Spool Holden VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit has a stroke length of 3.622 inches. This stroke length is designed to work with the specified 6.125" connecting rods for optimal performance.
