Spool Holden 202 Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.

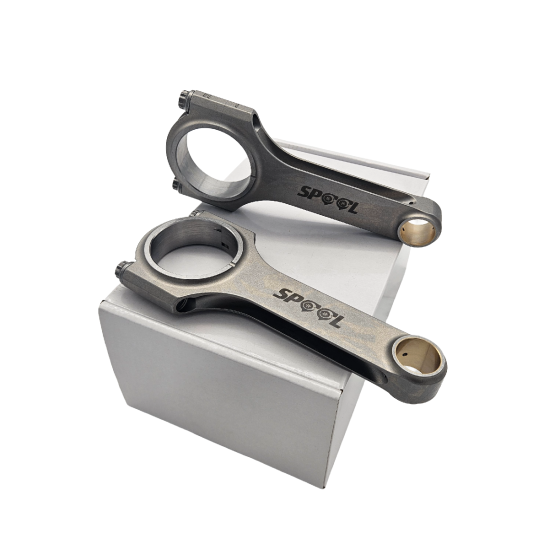

Holden 202 Conrods
These are a standard length connecting rod for Holden 202 six cylinder engines with a bronze bushed small end (FLOATING PIN).
Specifications:
Small End Pin Size - 0.866” / 22mm)
Weight - 534g (OEM Starfire Conrods weigh 558g)
These Conrods Feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Holden 202 Conrods |
|---|---|
| Brands | Spool |
| Engine | Holden 202 |
| Make | Holden |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the small end pin size for the Spool Holden 202 conrods?
The small end pin size for the Spool Holden 202 conrods is 0.866 inches (22mm). This is designed for a floating pin application.
What is the weight of the Spool Holden 202 conrods compared to OEM?
The Spool Holden 202 conrods weigh 534 grams, which is lighter than the OEM Starfire conrods that weigh 558 grams. This weight reduction can contribute to improved engine responsiveness.
What materials and processes are used in the construction of these conrods?
The Spool Holden 202 conrods are made from high tensile 4340 forged steel and feature a two-piece forging design. They undergo processes such as quenching, heat treatment, shot peening, and are 100% Magnafluxed to ensure structural integrity.
Are bearings included with the Spool Holden 202 conrods?
No, bearings are not included with the Spool Holden 202 conrods. You will need to source the appropriate bearings separately for your build.
What kind of testing do the Spool Holden 202 conrods undergo?
The Spool Holden 202 conrods are subjected to X-ray and sonic testing, ensuring they meet high standards for quality and reliability. They are also weight matched within ±1 gram for consistency.
