Spool Commodore Holden Buick 3791cc OHV V6 - Supercharged Ecotech VS VT VX VY Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.

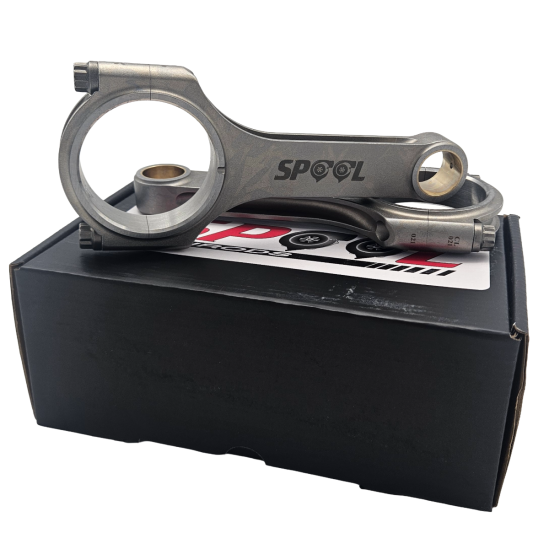

These are a direct fit conrod for all Supercharged Holden Commodore V6 ( Buick 3.8L Ecotech OHV 2V ) Engines.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Commodore Holden Buick 3791cc OHV V6 - Supercharged Ecotech VS VT VX VY Conrods |
|---|---|
| Brands | Spool |
| Engine | Buick V6 |
| Make | Holden |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the recommended machining for the Spool Commodore Holden Buick conrods?
The Spool conrods for the Buick V6 may require honing of the big-end or small-end to ensure proper fitment due to factory journal and pin size variations. Always check clearances and consult with your engine builder for specific machining needs.
Are bearings included with the Spool Commodore Holden Buick conrods?
No, the Spool Commodore Holden Buick conrods do not come with bearings. You will need to source the appropriate bearings separately based on your engine specifications.
What is the material and construction of these conrods?
These conrods are made from high tensile 4340 forged steel and feature a two-piece forging design. They are also heat treated, shot peened, and undergo X-ray and sonic testing to ensure reliability and performance.
What power levels can the Spool conrods handle in the Buick V6 engine?
While we have customers achieving over 1000 RWHP with these conrods, actual power handling will depend on factors such as machining, clearances, tuning, fuel quality, and boost levels. It's crucial to ensure your engine is built to handle the desired power output.
Do I need to perform any specific checks before installing the Spool conrods?
Yes, before installation, it's important to check the alignment of the dowelled caps, confirm proper fitment with the crankshaft and piston pins, and ensure all machining is completed to the builder's specifications for optimal performance.
