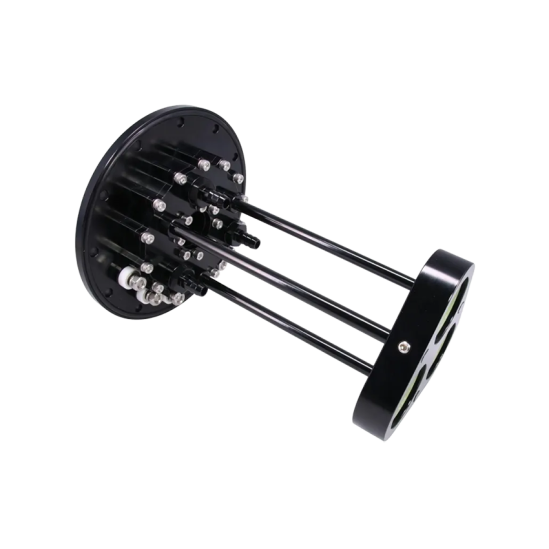

Raceworks V2 Single, Twin or Triple Fuel Pump Hanger with Filler - ALY-195BK
The Raceworks ALY-195BK combines a fuel-cell filler and adjustable fuel-pump hanger in one compact assembly. It can carry one, two or three compatible 39–40 mm pumps, making it suitable for anything from a straightforward EFI conversion to a staged high-flow fuel system.
Three separate stainless electrical terminals allow each pump to be wired and controlled independently. The black anodised assembly is E85-ready and uses PTFE seals, in-tank hose and Viton O-rings for compatibility with demanding performance fuel systems.
Important fitment note: ALY-195BK is a Raceworks V2 component with a 12 × 140 mm bolt pattern. It does not directly fit the older V1 fuel cells, which use a 12 × 120.5 mm pattern.
Features
- Accepts one, two or three compatible fuel pumps
- Suits 39–40 mm pumps
- Compatible with selected Walbro/TI Automotive GSS34x, GSS35x, 460 and 525-style pumps
- Three stainless electrical terminals for separately staged pumps
- Integrated filler cap
- Single AN-10 O-ring port
- O-ring seal between hanger and tank or mounting ring
- Black anodised finish
- E85-ready PTFE seals, in-tank hose and Viton O-rings
- Adjustable hanger height; longer hose may be required for deeper tanks
- Suitable for Raceworks V2 fuel cells, custom tanks and selected steel-tank EFI conversions
Specifications
| Part number | ALY-195BK |
|---|---|
| Pump capacity | One, two or three pumps |
| Pump diameter | 39–40 mm |
| Bolt pattern | V2 12 × 140 mm |
| Outlet | Single AN-10 O-ring port |
| Finish | Black anodised |
| Fitment | Universal/custom application |
| Fuel pumps included | No |
What's Included
- Raceworks V2 fuel-pump hanger assembly
- Integrated filler cap
- Base O-ring
Fuel pumps, weld-on or mounting ring, external fittings and application-specific plumbing are not stated as included. Professional fuel-system installation is recommended.
| Product Name | Raceworks V2 Single Twin Triple Fuel Pump Hanger with Filler |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Does the Raceworks ALY-195BK include fuel pumps?
No. This product is the fuel-pump hanger assembly with filler cap and seals. Compatible pumps, mounting rings, fittings and hose are purchased separately.
How many fuel pumps can the ALY-195BK hanger support?
It can be configured with one, two or three compatible 39–40 mm fuel pumps. Three separate stainless electrical terminals allow staged pump control.
Which pumps suit this Raceworks fuel-cell hanger?
It suits 39–40 mm Walbro/TI Automotive pumps, including GSS34x, GSS35x, 460 and 525-style pumps. Confirm the exact pump dimensions and installation requirements before assembly.
Will ALY-195BK fit an older Raceworks V1 fuel cell?
No. ALY-195BK is a V2 component with a 12 × 140 mm bolt pattern and does not directly fit a V1 fuel cell, which uses the older 12 × 120.5 mm pattern.
Is the ALY-195BK suitable for E85?
Yes. Raceworks states that it is E85-ready, using PTFE seals, in-tank hose and Viton O-rings.
