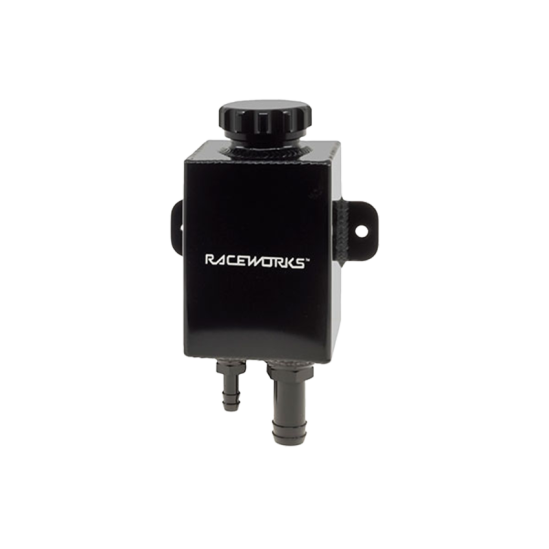

Raceworks 0.8L Rectangular Power Steering Reservoir - ALY-126BK
The Raceworks ALY-126BK is a compact rectangular power steering reservoir for performance vehicle steering systems, engine conversions and custom installations. Its internally baffled design helps manage fluid movement and aeration, supporting a more consistent supply to the power steering pump.
Manufactured from aluminium and finished in black, the reservoir combines a tidy engine-bay appearance with practical plumbing flexibility. It uses AN-6 ORB and AN-10 ORB ports and includes matching barb adapters for conventional hose connections.
Features
- 0.8 litre capacity
- Internally baffled design
- Rectangular aluminium construction
- Black finish
- Billet screw-on cap
- AN-6 ORB and AN-10 ORB ports
- Includes 3/8-inch and 3/4-inch barb adapters
- Integrated side mounting brackets
- Universal fitment for custom power steering systems
Specifications
| Part number | ALY-126BK |
|---|---|
| Capacity | 0.8 litres |
| Body height | 120 mm |
| Width excluding brackets | 87 mm |
| Depth | 87 mm |
| Ports | AN-6 ORB and AN-10 ORB |
| Finish | Black |
| Fitment | Universal |
What's Included
- Raceworks rectangular power steering reservoir
- Billet screw-on cap
- AN-10 to 3/4-inch barb adapter
- AN-6 to 3/8-inch barb adapter
This is a universal component rather than a vehicle-specific direct-fit replacement. Confirm mounting clearance, hose sizes and plumbing layout before installation.
| Product Name | Raceworks 0.8L Rectangular Power Steering Reservoir - Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the capacity of the Raceworks ALY-126BK reservoir?
The current Raceworks manufacturer specification lists a 0.8 litre capacity.
Is the ALY-126BK power steering reservoir baffled?
Yes. It is internally baffled to help control fluid movement and reduce aeration in demanding applications.
What ports does ALY-126BK use?
It has AN-6 ORB and AN-10 ORB ports and includes 3/8-inch and 3/4-inch barb adapters.
Is this a direct-fit reservoir for a particular vehicle?
No. ALY-126BK is a universal reservoir. Check available space, bracket positioning, hose sizes and port routing before ordering.
What are the reservoir dimensions?
The body is 120 mm high, 87 mm wide excluding the brackets, and 87 mm deep.
-
