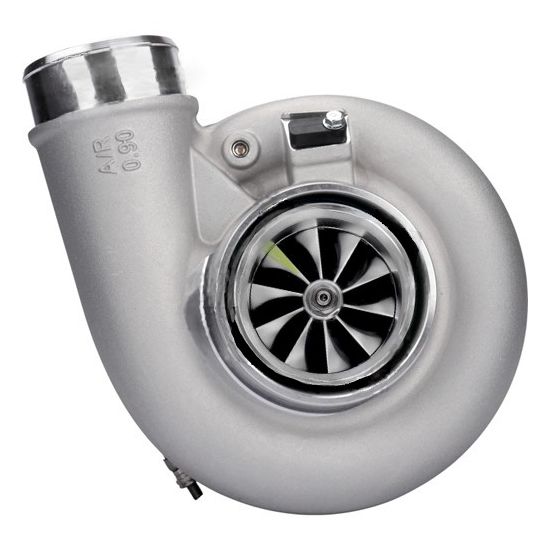

PULSAR 6270G Dual Ball Bearing 900HP 62mm Turbo
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
PSR 6270G Dual Ball Bearing 900HP 62mm Turbo
DESCRIPTION:
- Dual ceramic ball bearing with steel cage provides optimal turbo response &
better durability by reducing the shaft-motion - 62mm inducer 10 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Water fittings included with the super core
- 2 Options in Turbine Housing
- HP rated at 900HP at the flywheel
- Suitable engine size: 2.0-6.0L
- Compressor Wheel: 62.7*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ V-Band
- Turbine Inlet: T4 divided
- Turbine Outlet: 4″ V-Band
- Water Ports: -6AN
- Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange )
- Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)
- 2 Options in Turbine Housing: T4(Divided) 0.95 A/R, 1.06 A/R
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
| Product Name | PULSAR 6270G Dual Ball Bearing 900HP 62mm Turbo |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the recommended oil feed and drain size for the PULSAR 6270G turbo?
The PULSAR 6270G turbo requires a -4AN oil feed line and a -12AN oil drain line. Ensure that the oil feed flange is compatible with the standard T4 flange size.
What engine sizes is the PULSAR 6270G turbo suitable for?
The PULSAR 6270G turbo is suitable for engine sizes ranging from 2.0L to 6.0L. This versatility makes it a good option for various performance applications.
What are the turbine housing options available for the PULSAR 6270G turbo?
The PULSAR 6270G turbo offers two turbine housing options: T4 divided with an A/R of 0.95 and 1.06. The choice of housing will affect the turbo's response and power characteristics.
How does the dual ball bearing design benefit the PULSAR 6270G turbo?
The dual ceramic ball bearing design in the PULSAR 6270G turbo enhances turbo response and durability by reducing shaft motion. This results in quicker spool times and improved reliability under high-performance conditions.
What is the maximum horsepower rating for the PULSAR 6270G turbo?
The PULSAR 6270G turbo is rated for a maximum of 900 horsepower at the flywheel. However, actual performance will depend on factors such as engine setup, tuning, and fuel quality.
-
-
