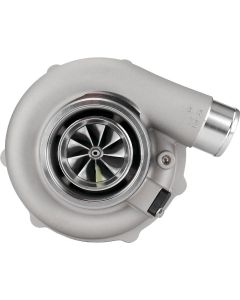

PULSAR Reverse Rotation 5455G 660HP Single Turbo Or Twin Turbo Set
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
This high-performance turbocharger features advanced technologies designed for enhanced response, durability, and efficiency:
-
Ball Bearing System: The dual ceramic ball bearing system reduces shaft movement, delivering optimal turbo response and improved durability.
-
Compressor Wheel: The 9-blade PTG-Aero billet compressor wheel features Extended Tapered Tip Technology, offering increased airflow and efficiency.
-
Turbine Wheel: The 9-blade PTG-Aero Inconel 713c turbine wheel enhances strength and flow characteristics, providing better overall performance.
-
Compressor Inlet: The anti-surge ported-shroud compressor inlet prevents compressor surge, with the cover integrating a speed sensor port for enhanced monitoring.
-
Compressor and Turbine Specifications:
- Compressor Wheel: 54mm (inducer) x 67mm (exducer).
- Turbine Wheel: 60mm (inducer) x 55mm (exducer).
-
Inlet and Outlet:
- Compressor Outlet: 2-inch hose.
- Turbine Inlet: Compatible with T25, T3, T4, or V-band connections.
- Turbine Outlet: 3-inch V-band connection.
-
Water and Oil Connections:
- Water Ports: 2x M14 x 1.5 fittings.
- Oil Inlet: 7/16-24 UNF thread with a pre-installed -4AN restrictor.
- Oil Outlet: Standard T3 oil drain flange.
This turbocharger offers superior performance, faster spool times, and greater durability, making it a top choice for high-performance builds.
| Product Name | PULSAR Reverse Rotation 5455G 660HP Single Turbo Or Twin Turbo Set |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the maximum horsepower rating for the PULSAR Reverse Rotation 5455G turbocharger?
The PULSAR Reverse Rotation 5455G turbocharger is rated for up to 660 horsepower. However, actual performance will depend on factors such as engine setup, tuning, and boost levels.
What type of oil and water connections does the PULSAR 5455G require?
The PULSAR 5455G features 2x M14 x 1.5 fittings for water ports, a 7/16-24 UNF thread for the oil inlet with a pre-installed -4AN restrictor, and a standard T3 oil drain flange for the oil outlet.
What are the compressor and turbine wheel specifications for the PULSAR 5455G?
The compressor wheel measures 54mm (inducer) x 67mm (exducer), while the turbine wheel measures 60mm (inducer) x 55mm (exducer). These specifications contribute to the turbo's performance characteristics.
Can the PULSAR 5455G be used with different exhaust connections?
Yes, the turbine inlet of the PULSAR 5455G is compatible with T25, T3, T4, or V-band connections, allowing for flexibility in installation.
What advantages does the dual ceramic ball bearing system provide in the PULSAR 5455G?
The dual ceramic ball bearing system in the PULSAR 5455G reduces shaft movement, which enhances turbo response and durability, leading to improved performance in high-stress applications.
-
-
-
-
-
