Raceworks 1L Internal-Breather Catch Can with Straight AN-10 Ports - ALY-134BK
The Raceworks ALY-134BK is a compact, internally vented catch can designed for open breather-style crankcase ventilation systems. Its enclosed internal breather arrangement delivers a neat, low-profile appearance without an exposed filter, while the baffled tank helps separate oil mist from crankcase gases.

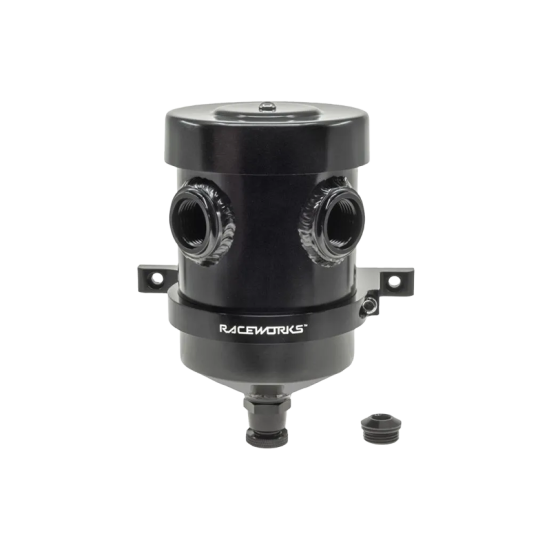

The black cylindrical aluminium tank uses two straight AN-10 ORB ports and includes both an AN-10 drain tap and an ORB blanking plug. A supplied T-bolt mounting clamp provides a secure universal mounting solution, with optional billet clamps available separately.
Important: This internal-breather tank cannot be plumbed back into the engine intake. It is intended for vent-to-atmosphere applications only, subject to vehicle use and applicable road or motorsport regulations.
Features
- 1.0 litre capacity
- Internal breather design for a compact appearance
- Internally baffled to assist oil separation
- Two straight AN-10 ORB ports
- AN-10 drain tap and ORB plug included
- Black aluminium construction
- T-bolt mounting clamp included
- Universal fitment
- Raceworks two-year product warranty
Specifications
| Magento/listing SKU | ALY-13XBK-XPX |
|---|---|
| Raceworks part number | ALY-134BK |
| Capacity | 1.0 litre |
| Ports | 2 x AN-10 ORB, straight orientation |
| Drain | AN-10 with tap |
| Breather type | Internal |
| Tank design | Internally baffled |
| Height | 180 mm |
| Diameter | 118 mm |
| Finish | Black |
| Fitment | Universal |
What's Included
- Raceworks 1L internal-breather catch can
- AN-10 drain tap
- ORB blanking plug
- T-bolt mounting clamp
This universal component requires custom mounting and plumbing. Confirm available clearance, port orientation, crankcase ventilation requirements and the legality of a vent-to-atmosphere system for the intended application before installation.
| Product Name | Raceworks 1L Internal-Breather Catch Can with Straight AN-10 Ports - Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the manufacturer part number for this catch can?
Car Mods Australia lists the product under SKU ALY-13XBK-XPX. The specific straight-port Raceworks manufacturer part number stated on the page is ALY-134BK.
Can this catch can be plumbed back to the intake?
No. Raceworks states that this internal-breather tank cannot be plumbed back to the intake. It is intended for vent-to-atmosphere applications, subject to applicable regulations.
What ports does ALY-134BK use?
It has two straight-orientation AN-10 ORB ports and an AN-10 drain outlet.
Is the catch can baffled?
Yes. The 1 litre tank is internally baffled to assist with separating oil mist from crankcase gases.
What mounting hardware is included?
A T-bolt-style mounting clamp is included. Optional billet mounting clamps are available separately.
-
-
-
-
