PULSAR 6262G 900HP 62mm Dual Ball Bearing Turbo

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

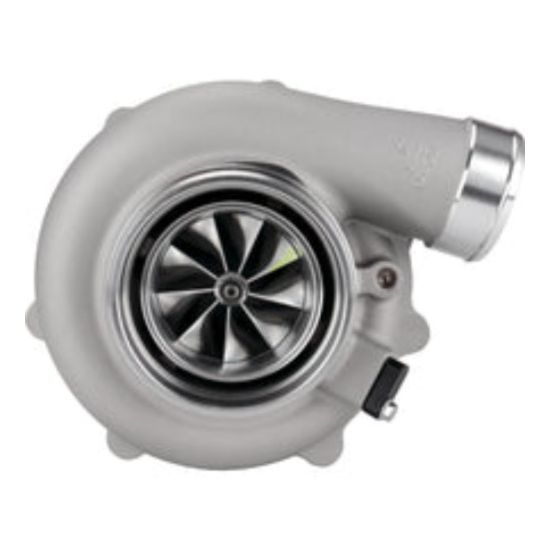

PULSAR 6262G 900HP 62mm Dual Ball Bearing Turbo
DESCRIPTION:
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade PTG-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade PTG-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
- Compressor Wheel: 62*76mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4” Hose
- Compressor Outlet: 2” Hose
- Turbine Inlet: T3/T4/V-Band
- Turbine Outlet: 3” V-Band
- Water Ports: 2-M14 x 1.5
- Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
- Oil Drain: Std T3
- Comes with Inlet flange and clamp (DVB) and Outlet flange and clamp
| Product Name | PULSAR 6262G 900HP 62mm Dual Ball Bearing Turbo |
|---|---|
| Brands | Pulsar |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What are the ideal applications for the PULSAR 6262G turbo?
The PULSAR 6262G turbo is designed for high-performance applications, typically suited for engines producing up to 900 horsepower. It is ideal for street and track use, particularly in builds aiming for quick spool times and robust power delivery.
What are the benefits of the dual ceramic ball bearing system in this turbo?
The dual ceramic ball bearing system in the PULSAR 6262G turbo enhances turbo response and durability by reducing shaft motion. This design allows for quicker spool times and improved reliability under high boost conditions, making it suitable for performance-oriented applications.
What type of tuning is recommended when using the PULSAR 6262G turbo?
When installing the PULSAR 6262G turbo, it is crucial to have proper tuning to ensure optimal performance and reliability. A custom tune is recommended to match the turbo's characteristics with your engine setup, fuel type, and boost levels, ensuring safe operation and maximum power output.
Does the PULSAR 6262G turbo require any specific installation considerations?
Yes, when installing the PULSAR 6262G turbo, ensure that the oil and coolant lines are correctly routed and that the turbo is securely mounted. Additionally, check for adequate clearance and ensure the compressor inlet is properly sized to prevent surge. It's also advisable to use a suitable wastegate to manage boost levels effectively.
What is the significance of the anti-surge ported-shroud compressor inlet?
The anti-surge ported-shroud compressor inlet on the PULSAR 6262G turbo helps to prevent compressor surge by allowing for smoother airflow during low boost conditions. This design feature improves overall efficiency and responsiveness, making it particularly beneficial for applications that require quick throttle response.
