Haltech Nexus R5

The Haltech Nexus R5 VCU is a next-generation engine management system designed for serious performance applications. Combining a powerful ECU, smart power distribution module, dual-channel wideband controller, data logger, and advanced drive-by-wire control, the Nexus R5 delivers unmatched capability in a single integrated unit.

Engineered for high-end street, race, marine, and custom builds, the Nexus R5 offers a flexible range of inputs, outputs, and CAN connectivity to support complex vehicle setups. With built-in wideband control, extensive injector and ignition support, and industry-leading PWM functionality, it provides the reliability and precision demanded by professional tuners and engine builders.

Key Features

Integrated Vehicle Control Unit (VCU)
A true all-in-one ECU and PDM system with built-in data logging and dual wideband controllers.

High-Power Outputs

• 4 x 25A push-pull PWM outputs (5 kHz), suitable for injectors, coils, transbrakes, thermofans, and fuel pumps.

• 12 x 8A high-side outputs (200 Hz PWM) ideal for sensors, solenoids, and auxiliary functions.

Injector and Ignition Support

• 18 x peak/hold injector drivers (also usable as low-side outputs).

• 12 x low-current ignition outputs with low-side capability.

• 8 x PWM-capable low-side outputs (DPOs).

• 4 x H-bridge outputs (8A) designed for electronic throttle control.

Advanced Input Capability

• 23 x 0–5V analog inputs, including throttle redundancy and selectable 5V pullup.

• Trigger and home inputs with configurable thresholds and glitch filtering.

• 10 x synchronous pulsed inputs for cam sensors, frequency inputs, or additional analog channels.

Dual Wideband Controllers
Compatible with both NTK and Bosch LSU 4.9 sensors, ensuring precise air-fuel ratio control across all operating conditions.

Flexible Communication Options
3 x CAN ports with switchable termination for seamless integration with dashes, PDMs, and other CAN-enabled devices.

Harness Overview

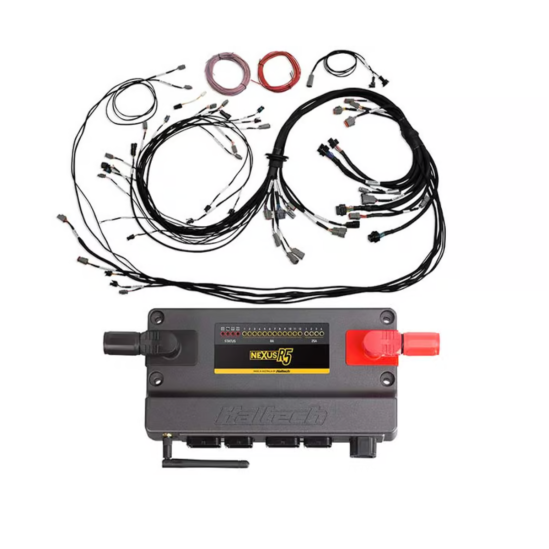

The Nexus R5 is designed to pair with Haltech’s terminated V8 engine harness, providing a clean, professional installation for a wide range of GM, Ford, and Chrysler big-block and small-block engines. The base harness supplies all core connections to the R5 VCU, with additional Injector, Ignition, and Alternator sub-harnesses available to complete the system.

Available Injector Breakouts

• HT-186000 — V8 Primary Injector EV1

• HT-186001 — V8 Secondary Injector EV1

• HT-186002 — V8 Primary Injector USCAR

• HT-186003 — V8 Secondary Injector USCAR

Available Ignition Breakouts

• HT-186060 — Nexus V8 GM/Chrysler IGN1A

• HT-186061 — Nexus V8 Ford IGN1A

This modular design gives builders the flexibility to tailor the installation to their specific engine combination and components.
