Performance Springs Toyota 2JZ-GTE / 2JZ-GE Single Valve Springs – PS 25109
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

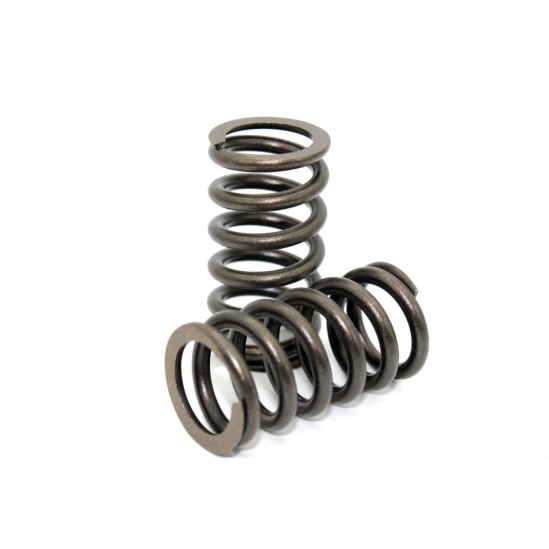

Performance Springs PS 25109 Single Valve Springs are designed for Toyota 2JZ-GTE and 2JZ-GE engines.
These performance valve springs are designed to provide improved valve train control for performance and modified 2JZ applications while retaining the use of standard/OEM valve spring retainers.
The PS 25109 has a maximum specified valve lift of 0.395", installs at 1.350" installed height and provides 82 lb of seated pressure.
At 10 mm lift, the spring provides 185 lb of open pressure.
The spring features a 27.7 mm outside diameter, 19.9 mm inside diameter and 23.1 mm coil bind.
A complete Toyota 2JZ-GTE / 2JZ-GE engine requires 24 × PS 25109 valve springs.
Spring Specifications
- Engine Model: 2JZ-GTE / 2JZ-GE
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.395"
- Retainers: Standard / OEM
- Installed Height: 1.350"
- Seated Pressure: 82 lb
- Open Pressure: 185 lb @ 10 mm
- Outside Diameter: 27.7 mm
- Inside Diameter: 19.9 mm
- Coil Bind: 23.1 mm
- Quantity Required: 24 springs
Application
- Toyota 2JZ-GTE
- Toyota 2JZ-GE
- Toyota 2JZ performance applications
- Modified Toyota 2JZ engines
- Performance 2JZ valve train applications
What's Included
- 24 × Performance Springs PS 25109 Single Valve Springs
Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and complete valve train geometry against the specific engine and cylinder-head configuration before installation.
Performance Valve Springs states that it is the responsibility of the person installing the parts to check and recheck all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.
If there is any concern regarding specifications or application, contact Performance Valve Springs before ordering.
| Product Name | Performance Springs Toyota 2JZ-GTE / 2JZ-GE Single Valve Springs – PS 25109 |
|---|---|
| Brands | Performance Springs |
| Engine | 2JZ, 2JZ-GTE |
| Make | Toyota |
