Performance Springs Subaru FA20 Single Valve Spring & Titanium Retainer Kit – PST 86FA20K
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

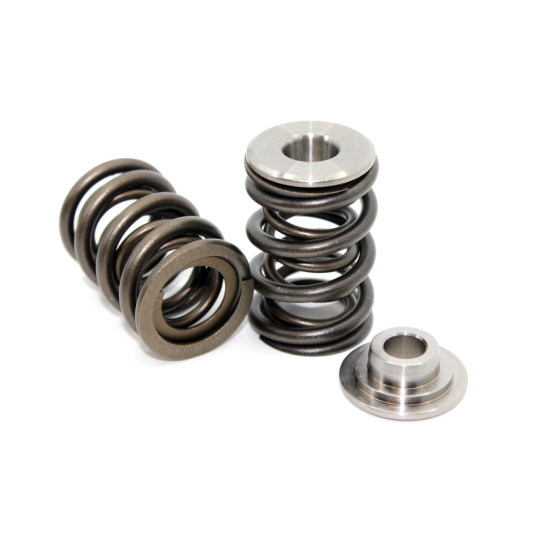

Performance Springs PST 86FA20K is a performance single valve spring and titanium retainer kit designed specifically for the Subaru FA20 engine.
The kit is designed to provide improved valve train control for performance and modified Subaru FA20 applications. The springs install at 31.6 mm installed height, with 90 lb of seat pressure and 220 lb of pressure at 12.5 mm lift.
The springs are specified for a maximum valve lift of 12.5 mm.
This complete kit includes 16 PVS single valve springs and 16 titanium valve spring retainers.
Spring Specifications
- Engine Model: FA20
- Spring Type: Single Valve Spring
- Installed Height: 31.6 mm
- Seat Pressure: 90 lb
- Pressure @ 12.5 mm Lift: 220 lb
- Maximum Valve Lift: 12.5 mm
- Valve Springs: 16
- Titanium Retainers: 16
Application
- Subaru FA20
- Subaru FA20 performance applications
- Modified Subaru FA20 engines
Kit Includes
- 16 × PVS Single Valve Springs
- 16 × Titanium Valve Spring Retainers
Important Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.
Performance Valve Springs recommends that all dimensions, pressures, applications and specifications are checked and rechecked before, during and after installation.
Titanium Retainer Note: Titanium retainers are included with this kit. Retainer compatibility should be confirmed against the specific valve train configuration before installation.
| Product Name | Performance Springs Subaru FA20 Single Valve Spring & Titanium Retainer Kit – PST 86FA20K |
|---|---|
| Brands | Performance Springs |
| Engine | FA20 |
| Make | Subaru |
