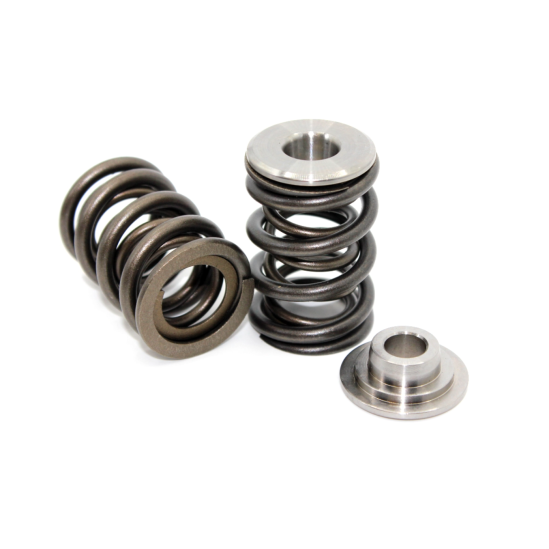

Performance Springs Subaru EZ30R 24V Dual Valve Springs & Titanium Retainer Kit – PST EZ30RK

Performance Springs PST EZ30RK is a performance dual valve spring, titanium retainer and base locator kit designed specifically for the Subaru EZ30R 24 Valve engine.

The kit is designed to provide increased valve train control for performance and modified EZ30R applications. The springs install at 95 lb of seat pressure and are specified with a maximum valve lift of 12.5 mm.

The supplier specifies a coil bind height of 0.745" (18.9 mm).

This complete kit includes 24 PVS dual valve springs, 24 titanium valve spring retainers and 24 base locators, providing a complete 24-valve engine set.

Spring Specifications

• Engine Model: EZ30R
• Configuration: 24 Valve
• Spring Type: Dual Valve Spring
• Seat Pressure: 95 lb
• Pressure: 195 lb
• Maximum Valve Lift: 12.5 mm
• Coil Bind: 0.745" / 18.9 mm
• Valve Springs: 24 dual spring sets
• Titanium Retainers: 24
• Base Locators: 24

Application

• Subaru EZ30R 24V
• Subaru EZ30R performance applications
• Modified Subaru EZ30R valve train applications

Kit Includes

• 24 × PVS Dual Valve Springs
• 24 × Titanium Valve Spring Retainers
• 24 × Base Locators

Important Installation Information

Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility, base locator compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.

Performance Valve Springs states that it is the installer's responsibility to check and recheck all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.

Titanium Retainer Note: The supplier manufactures its titanium retainers in-house and advises that delays may occur. The supplier also notes that the majority of its titanium retainers do not fit the OEM spring, so compatibility should be confirmed before installation.
