Performance Springs Subaru EJ25 SOHC Single Valve Springs – PS 3506100
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

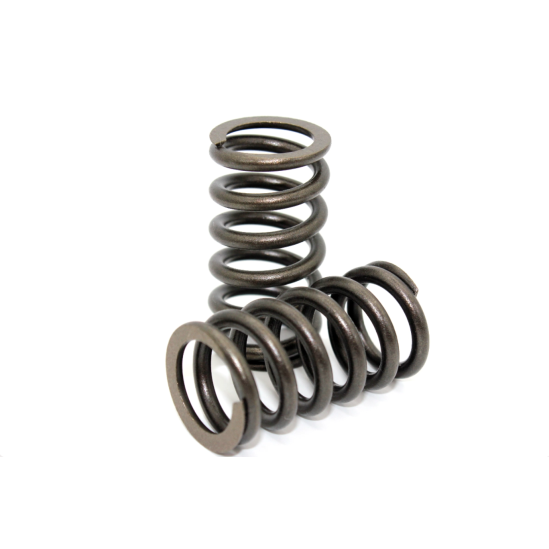

Performance Springs PS 3506100 Single Valve Springs are designed specifically for the Subaru EJ25 SOHC engine.
These performance replacement valve springs are designed to provide reliable valve train control for Subaru EJ25 SOHC applications while retaining the standard (OEM) valve spring retainers.
The PS 3506100 installs at 1.730" installed height and provides 50 lb of seated pressure. The supplier specifies the maximum valve lift as factory specification.
The springs feature a 26.4 mm outside diameter, 18.8 mm inside diameter and 24.7 mm coil bind height.
A complete Subaru EJ25 SOHC engine requires 16 × PS 3506100 valve springs.
Spring Specifications
- Engine Model: EJ25
- Configuration: SOHC
- Spring Type: Single Valve Spring
- Maximum Valve Lift: Factory specification
- Retainers: Standard (STD)
- Installed Height: 1.730"
- Seated Pressure: 50 lb
- Outside Diameter: 26.4 mm
- Inside Diameter: 18.8 mm
- Coil Bind: 24.7 mm
- Quantity Required: 16 springs per engine
Application
- Subaru EJ25 SOHC
- Subaru EJ25 SOHC performance applications
- Subaru EJ25 SOHC valve train applications
What's Included
- 16 × Performance Springs PS 3506100 Single Valve Springs
The supplier specifies that a Subaru EJ25 SOHC requires 16 × PS 3506100 springs.
Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.
The maximum valve lift for this spring is specified by the supplier as factory specification, so the actual valve lift and valve train geometry should be checked on the specific engine before installation.
Performance Valve Springs recommends that all dimensions, pressures, applications and specifications are checked and rechecked before, during and after installation.
| Product Name | Performance Springs Subaru EJ25 SOHC Single Valve Springs – PS 3506100 |
|---|---|
| Brands | Performance Springs |
| Engine | EJ25 |
| Make | Subaru |
