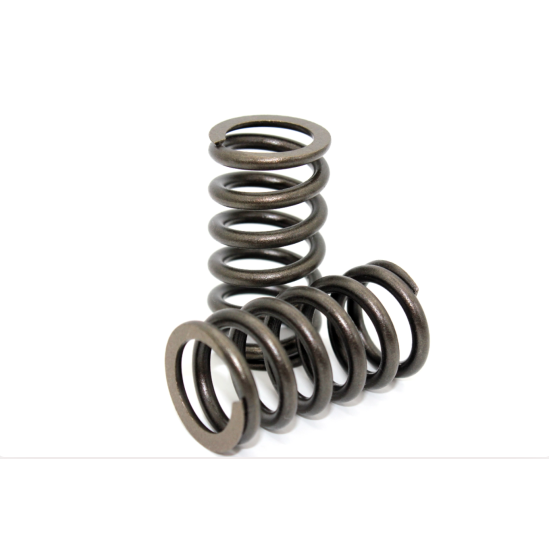

Performance Springs Mitsubishi 6G72 24V DOHC & Nissan RB26DETT Single Valve Springs – PS 3506122

Performance Springs PS 3506122 is a high-performance single valve spring designed for both Mitsubishi 6G72 24V DOHC and Nissan RB26DETT engine applications.

The PS 3506122 provides a common performance valve spring solution across these Mitsubishi and Nissan applications, with a 27.9 mm outside diameter, 19.5 mm inside diameter and 24.1 mm coil bind height.

The application-specific installed height and spring pressures differ between the two engines, so the correct specifications must be followed for the engine being assembled.

Mitsubishi 6G72 24V DOHC

• Maximum Valve Lift: 0.435"
• Retainers: Standard (STD)
• Installed Height: 1.500"
• Seated Pressure: 75 lb
• Open Pressure: 175 lb @ 8.5 mm
• Outside Diameter: 27.9 mm
• Inside Diameter: 19.5 mm
• Coil Bind: 24.1 mm
• Quantity Required: 24 springs

Nissan RB26DETT

• Maximum Valve Lift: 0.433" (11 mm)
• Retainers: Factory
• Installed Height: 1.530"
• Seated Pressure: 68 lb
• Open Pressure: 190 lb @ 11 mm
• Outside Diameter: 27.9 mm
• Inside Diameter: 19.5 mm
• Coil Bind: 24.1 mm
• Quantity Required: 24 springs

Applications:

• Mitsubishi 6G72 24V DOHC
• Nissan RB26DETT

What's Included:

• Performance Springs PS 3506122 Single Valve Springs
• Sold/required as 24 springs per complete engine

Important Installation Information:

Although the PS 3506122 is the same Performance Springs part number for both applications, the installed height and pressure specifications are application-specific.

For the Mitsubishi 6G72 24V DOHC, use the Mitsubishi specifications listed above.

For the Nissan RB26DETT, use the Nissan specifications listed above.

Always verify valve lift, installed height, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.

Performance Valve Springs states that spring pressure specifications have an approximate ±8% tolerance and that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
